167CC / 62MM DOME HT COATED CYLINDER KIT (4V. eSP+ 125CC/150/160 ENGINES)

YUMINASHI 167CC / 62MM DOME HT COATED CYLINDER KIT (4V. eSP+ 125CC/150/160 ENGINES) (12100-K0S-V62HT)

Hover over image to zoom

  • YUMINASHI 167CC / 62MM DOME HT COATED CYLINDER KIT (4V. eSP+ 125CC/150/160 ENGINES) (12100-K0S-V62HT)
  • YUMINASHI 167CC / 62MM DOME HT COATED CYLINDER KIT (4V. eSP+ 125CC/150/160 ENGINES) (12100-K0S-V62HT)
  • YUMINASHI 167CC / 62MM DOME HT COATED CYLINDER KIT (4V. eSP+ 125CC/150/160 ENGINES) (12100-K0S-V62HT)
  • YUMINASHI 167CC / 62MM DOME HT COATED CYLINDER KIT (4V. eSP+ 125CC/150/160 ENGINES) (12100-K0S-V62HT)
YUMINASHI
฿4,595.00
SKU:
12100-K0S-V62HT
Weight:
1,172.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

Sorry but this item is currently unavailable. Please check back at a later stage.

Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● 167CC / 62MM DOME HT COATED CYLINDER KIT (4V. eSP+ 125CC/150/160 ENGINES) (12100-K0S-V62E)

● The 167cc dome piston in this HT Big Bore Cylinder Kit is a 62mm dome piston, which is a high compression kit with a 2mm larger piston compared to stock, with a Molybdenum Disulfide Coating (MoS2 coating), that is a lubricating, anti-friction/anti-wear coating applied to the piston skirt only, which is made up of microscopic particles that are great at coating metallic surfaces.

That coating effect reduces the amount of friction between surfaces. As a result, moving parts can move more easily, without causing nearly as much wear and tear as they would if the Moly wasn't there..

● The piston in this kit has also received a Thermal Barrier Crown Coating which is applied to the top of the piston and is designed to reflect heat into the combustion chamber, thereby increasing exhaust gas velocity and greatly improving scavenging potential.
The 0.38mm (.0015”) thick coating can also assist in extending piston life by decreasing the rate of thermal transfer.

● This YUMINASHI DOME HT COATED Cylinder Kit is ready to be installed on 125cc and 160cc with the STD stock valves from the 4valve ESP+ engines installed.

※ The valves of the 160cc and 125cc cylinder head are both the same size, there is no difference in the valve size between the 125 and 160 4V head.

※ We recommend to install the 140cc B-type 8-holes injector (LINK) if your stock/original engine is a 125cc in combination with this 167cc cylinder kit.
※ If your engine is stock/original a 160cc engine, then you still can use the original injector, no need to install another one...

info-icon-25pxl-.png Torque Spec for the cylinder head nuts are: Torque 27 N m (2.8 kgf m, 20 lbf ft)

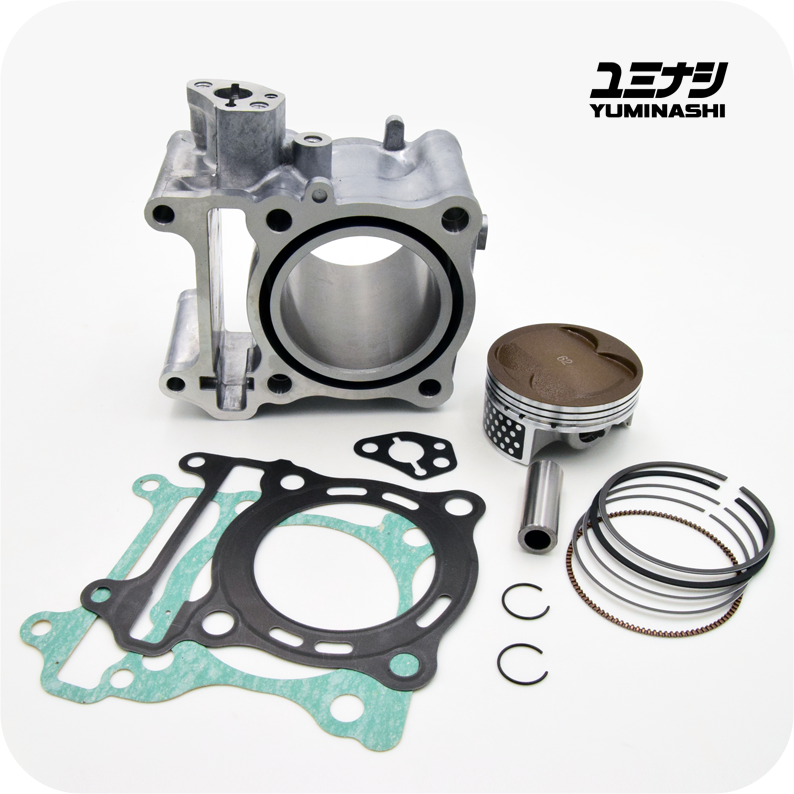

● The YUMINASHI DOME HT Cylinder Kit is a high quality complete kit with an amazing price tag, which comes with:

  • 1 x 62mm Cylinder Block
  • 1 x 62mm Coated High Compression Dome Piston
  • 1 x 62mm Piston Rings Set
  • 1 x 14mm Piston Pin
  • 2 x 14mm Circlips
  • 1 x 62mm Steel Head Gasket
  • 1 x Cylinder Base Gasket (Asbestos Free)


● THIS 167CC DOME HT CYLINDER KIT IS THE CORRECT KIT TO BE INSTALLED ON THESE eSP+ ENGINES:

● 125CC 4V eSP+ (STD BORE X STROKE= 53.5MM x 55.5MM):

  • FORZA125 (2021- )
  • GIORNO+ 125 (2023- )
  • LEAD 125 (2022- )
  • PCX125 (2021- )
  • SH125i (2020- )
  • SH125 MODE (2021- )

● 150/160CC 4V eSP+ (STD BORE X STROKE= 60MM x 55.5MM):

  • ADV160 (2022- )
  • AIR BLADE 160 (2022-)
  • CLICK 160 (2021- )
  • PCX150 (USA) (2021- )
  • PCX160 (2021- )
  • SH150i / 160 DIGITAL SOHC (2020- )
  • STYLO 160 4V (
  • VARIO 160 (2021- )

● 62MM DOME PISTON SPECIFICATIONS: (CHECK BEFORE YOU ORDER!)


  • A= 18.21MM
  • B= 18.97MM
  • C= 14.02MM
  • D= 61.99MM
  • E= 14MM
  • F= 11.21MM

budget-logo-2.png SMART SHOPPER TIP:

       ※ BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
