67MM / 15-PIN, TUNER EDITION PISTON (FLAT TOP)

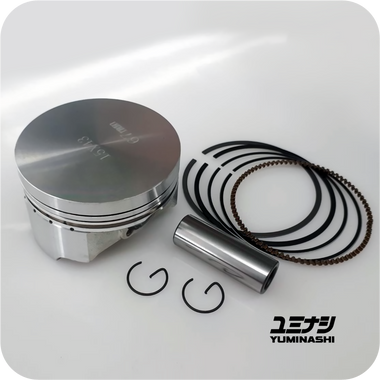

YUMINASHI 67MM / 15-PIN, TUNER EDITION PISTON (FLAT TOP) (13100-015-670A)

Hover over image to zoom

  • YUMINASHI 67MM / 15-PIN, TUNER EDITION PISTON (FLAT TOP) (13100-015-670A)
  • YUMINASHI 67MM / 15-PIN, TUNER EDITION PISTON (FLAT TOP) (13100-015-670A)
YUMINASHI
฿1,590.00
SKU:
13100-015-670A
Weight:
225.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● 67MM / 15-PIN, TUNER EDITION PISTON (FLAT TOP) (13100-015-567A)

● The 67mm piston is used by Malossi (#3411114 piston) for the 125-200 Rotax engines, the 67mm piston can't be used to bore the stock barrel/cylinder up, and need to be installed in a new cylinder which Malossi is selling as their 67mm #3115326 cylinder kit, or to re-sleeve the stock barrel/cylinder.

● With this Flat Top 67mm 15mm pin Tuner Edition piston you get a piston where you as engine tuner have the total freedom to create a custom small or big 2-valve, 3-valve, or 4-valve piston for basically any motorcycle Brand and motorcycle/scooter type, and this totally based on your needs and specifications.

※ With our 0.6mm (LINK) and 0.8mm (LINK) thickness cylinder base gaskets for the Rotax 200 engines, so that once you have worked the specifications out for the pistons, you can work 2 different squish heights out without machining the piston again.

※ If you are looking for the 66mm version to bore the stock barrel/cylinder up from the 200 Rotax engines, then you can click on this LINK to visit the page of the 66mm tuner edition piston.

● One thing is for sure, with this piston size you aren't playing, you mean business, and this piston can be installed on the stock stroke crankshaft, with perhaps a longer connecting rod which creates more higher RPM power, or in combination with a offset crankpin to stroke your engine up and this totally based on your personal needs.

● This Tuner Edition piston kit comes complete with Rings, Pin and Cir clips.

※ Keep in mind that a 15mm piston pin piston need to be installed with a 15mm connecting rod, so if your stock engine doesn't have a 15mm piston pin, then please check if we have a 15mm piston pin conrod available for your engine before you order!...

※ Check if this 67mm piston size fit between your cylinder studs before you order!...


● SPECIFICATIONS: (CHECK BEFORE YOU ORDER!)


  • A= 22.5MM
  • B= 22.5MM
  • C= 18.5MM
  • D= 67MM
  • E= 15MM (=Stock piston pin size for Aprilia, Lambretta, Scomadi, Royal Alloy, Yamaha Mio115, Nouvo115, TTX115, Fino115, FILANO 115, D'ELIGHT 115, GY6 engines & Honda Old CBR150R (Most Honda 100cc-160cc Honda engines need to install a 15mm pin conrod!))



budget-logo-2.png SMART SHOPPER TIP:


       ※ BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & 100 pieces of this product will receive a 25% DISCOUNT
