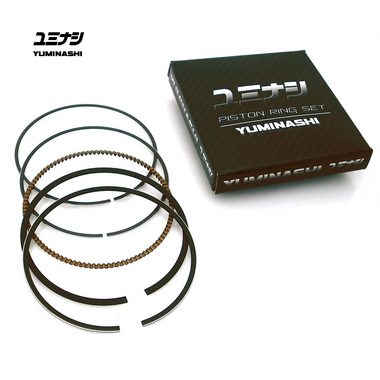

62MM YUMINASHI PISTON RING SET (HARD CHROMINUM PLATING)

YUMINASHI PISTON RING SET (62MM) (13011-000-620)

Hover over image to zoom

  • YUMINASHI PISTON RING SET (62MM) (13011-000-620)
  • YUMINASHI PISTON RING SET (62MM) (13011-000-620)
  • YUMINASHI PISTON RING SET (62MM) (13011-000-620)
YUMINASHI
RRP: ฿1,000.00
฿445.00 (You save ฿555.00)
SKU:
13011-000-620
Weight:
15.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● 60MM YUMINASHI PISTON RING SET (0.8X0.8X1.5) (HARD CHROMINUM PLATING) / JAPAN

● These 62mm Yuminashi Piston Rings are ready to be installed on 62mm pistons (STD & big bore) for:

HONDA:

  • ADV150
  • ADV160 eSP+ 4V (2022- )
  • AIR BLADE 110 / 110i / 125i / 150i
  • AIR BLADE 160 eSP+ 4V (2022-)
  • ASTREA 100
  • C110 SUPER CUB
  • C125 SUPER CUB
  • CT110 HUNTER CUB
  • CC110 CROSS CUB
  • CC125 CROSS CUB
  • CB125R ABS
  • CBR125R (CARBURETOR)
  • CBR125R (PGM-FI)
  • CLICK110 / CLICK110i
  • CLICK125i (ALL 2-VALVE)
  • CLICK150i / VARIO 150
  • CLICK 160 eSP+ 4V (2021- )
  • CRF110F (CARBURETOR)
  • CRF110F (PGM-FI)
  • DIO110i
  • DREAM100 / EX5 / C100
  • DRAM110i (PGM-FI)
  • FORZA125 (EURO-4)
  • FORZA125 EURO-5 (2021- )
  • GIORNO+ 125 eSP+ 4V (2023- )
  • GROM125 / GROM125 SF
  • INNOVA125 (CARBURETOR)
  • INNOVA125 PGM-FI
  • LEAD 125 eSP+ 4V (2022- )
  • VISION 110
  • WAVE100 (CARBURETOR)
  • WAVE110 (CARBURETOR)
  • WAVE110i (PGM-FI ALL EDITIONS)
  • WAVE125 (CARBURETOR)
  • MSX125 / MSX125 SF
  • NICE 110
  • NICE125
  • PCX125 (ALL 2-VALVE)
  • PCX125 eSP+ 4V (2021- )
  • PCX150 (2-VALVE)
  • PCX150 (USA) (2021- )
  • PCX160 eSP+ 4V (2021- )
  • SONIC125
  • SONIC150R (RS150R)
  • SH125i
  • SH125i eSP+ 4V (2020- )
  • SH125 MODE eSP+ 4V (2021- )
  • SH150i
  • SH150i / 160 DIGITAL SOHC (2020- )
  • SH125 MODE
  • STYLO 160 eSP+ 4V ( 2024- )
  • VARIO 160 (2021- )
  • XRM100 / XRM110 / XRM125
  • Z125 MONKEY
  • ETC...

KAWASAKI:

  • CHEER 110
  • CHEER 125
  • KAZE 125
  • KLX110 (2006 - PRESENT DAY)
  • KLX110L (2006 - PRESENT DAY)
  • KSR110-1 (2003 - 2010)
  • KSR110-2 (2010 - 2017)
  • KSR110 PRO (2014 - 2017)
  • Z125 (2016/2017/2018/2019/2020)
  • Z125 PRO Z125 (2016/2017/2018/2019/2020)

SUZUKI:

  • DRZ110
  • RAIDER 125
  • RAIDER R150

PITBIKES:

  • YX150 (2-VALVE & 4-VALVE / KLX TYPE)
  • YX160 (2-VALVE & 4-VALVE / KLX TYPE)
  • YX172 (4-VALVE)
  • DAYTONA ANIMA 150
  • DAYTONA ANIMA 190

TO BE INSTALLED ON BIG BORE PISTON BRANDS:

  • DAYTONA
  • KITACO
  • TAKEGAWA
  • YUMINASHI

● These high grade Yuminashi piston rings are developed and produced by very strict Japanese standards and all rings are treated with a hard chromium plating layer (Cr) as shown on the detail below:


● The hard chromium plating layer has excellent characteristics which combine the original properties of chromium metal with the advantages of erectro-deposits.
The main features of hard chromium plating are as follows:

1. Extremely high hardness of HmV (Micro Vickers)
800 to 1100 (cf. gray cast iron 220 to 270)

2. High melting point of approx. 1800°C
(cf. cast iron 1200°C)

3. Good thermal conductivity and corrosion
resistance.

4. Low friction factor and excellent wear resistance.
Such features are very effective in preventing
piston ring wear.

With the development of this hard chromium plating, engine performance has been greatly improved, It is applied to piston rings for medium sized engine as well as small sized engines.

● The following table shows the results of friction and wear tests on high grade cast iron and hard chromium plating. Gray cast iron was used for the mating material. As shown, it is evident that wear resistance of hard chromium plating is about 7 to 8 times higher than cast iron.


硬質クロムめっき（Cr）
硬質クロムめっきは、金属クロム本来の性質に電着物特有の性質
を兼ね備えた優れた特性をもっています。その主な特長は、
1. 硬さがきわめて高い。ビッカース硬さ800～1100
（普通鋳鉄 220～270）
2. 溶融点が高い。約1800℃（普通鋳鉄1200℃程度）
3. 熱伝導性、耐食性に優れる。
4. 摩耗係数が小さく、耐摩耗性に優れる。
などの特性を保持しているため、ピストンリングの摩耗防止対策
として非常に効果的です。
この硬質クロムめっきの開発によって、エンジン性能を大幅に飛
躍させたことは申すまでもありません。このため、小型エンジン
用ピストンリングはもとより、中型エンジンにも用いられていま
す。また、高圧圧縮機にも保油性のあるポーラスにしたクロムめ
っきが施されています。
●硬質クロムめっきの耐摩耗性
下のデータは高級鋳鉄リング材と硬質クロムめっきの摩擦摩耗試
験結果です。相手材には普通鋳鉄を使用。硬質クロムめっきは高
級鋳鉄の約7～8倍も磨耗しにくいことが、このデータからもは
っきりおわかりいただけると思います。このことは摩耗条件によ
っても大きく変わりますが、一般の正常運転でのガソリン・ディ
ーゼルエンジンに組付けられた場合でも、ほぼ同様の摩耗結果が
得られます。
