23425-K1Z-1543 | 15/43T FINAL DRIVE GEAR SET (PCX160 / ADV160 / CLICK160 / AIRBLADE 160 / SH125-150 4V...)

YUMINASHI 15/43T FINAL DRIVE GEAR SET (PCX160 / ADV160 / CLICK160 / AIRBLADE 160 / SH125-150 4V...) (23425-K1Z-1543)

Hover over image to zoom

  • YUMINASHI 15/43T FINAL DRIVE GEAR SET (PCX160 / ADV160 / CLICK160 / AIRBLADE 160 / SH125-150 4V...) (23425-K1Z-1543)
  • YUMINASHI 15/43T FINAL DRIVE GEAR SET (PCX160 / ADV160 / CLICK160 / AIRBLADE 160 / SH125-150 4V...) (23425-K1Z-1543)
  • YUMINASHI 15/43T FINAL DRIVE GEAR SET (PCX160 / ADV160 / CLICK160 / AIRBLADE 160 / SH125-150 4V...) (23425-K1Z-1543)
YUMINASHI
R$453,97
SKU:
23425-K1Z-1543
Weight:
685.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● 15/43T FINAL DRIVE GEAR SET (PCX160 / ADV160 / CLICK160 / AIRBLADE 160 / SH125-150 4V...)  (23425-K1Z-1543)

● This 15/43T Final Drive Gear Set is intended to be installed on the 4-valve 125cc, 150cc and 160cc eSP+ engines, and could be a solution to solve the issue of hitting the RPM limiter prematurely with a big bore kit installed to reach maximum top speed, if your engine has enough power for it.

● This specific set is a custom set created with performance in mind, so both sprockets have been made les wide compared to the stock sprocket, and this has been done to get less drag as result. The splines from the 15T sprocket are also made with a narrower tolerance and tighter fit compared to stock, and this to have the sprocket perfectly centered in the counter sprocket and to lower the risk on sprocket noise.

※ You will be able to push the splines from the 15T sprocket about to halfway in the counter sprocket, and the sprocket will be able to go all the way in the counter sprocket by gently tapping on the 15T sprocket with a hammer, and keep in mind that there is no need to use any force for that, it will go all the way in and make a perfect tight fit.

※ Your 4V-125cc, 4V-150cc and 4V-160cc eSP+ engine has stock/original a 13T countershaft sprocket installed in combination with a 44T final gear.

※ Keep in mind that you need to remove the stock/standard 44T final gear sprocket 23430-K1Z-J10 from the shaft, and replace it with pressing the new 43T final gear sprocket on the shaft, if you don't know how to do this, then you can order this set also with the shaft included in the set (LINK).

※ We strongly recommend to use the high grade MOTUL Scooter Gear Plus 80W-90 gear oil (LINK), for the stock engine and certainly if you have a tuned engine.

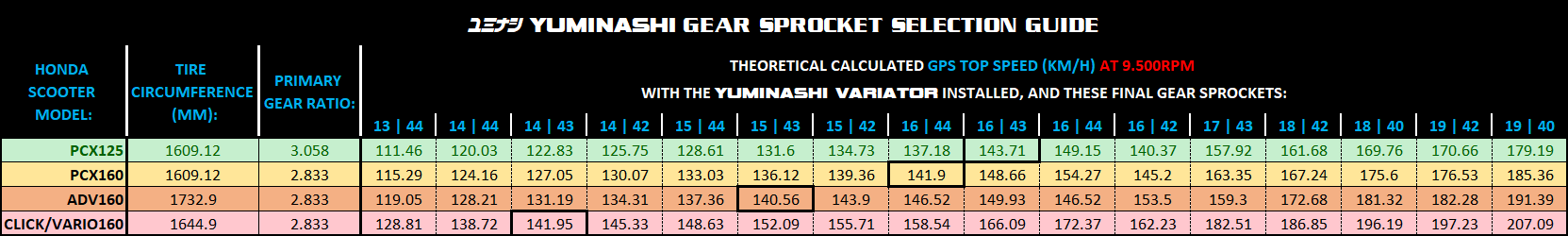

● PLEASE USE THE FINAL GEAR SPROCKET GUIDE BELOW:

● The Final Gear Sprocket Guide below can give you an impression about what the speed result would be if you install a YUMINASHI variator on the gear combination you have now, and what the result could be if you are using this 15/43T or another gear combination.

● Keep in mind that the heavier gear combination you select, the more your engine will struggle to reach top speed and to hit the RPM limiter.

● If your engine doesn't have power enough, then a heavier final gear sprocket combination will not result in a higher top speed, but into a lower top speed and very sensitive to head wind, road conditions (uphill roads).

● We have created many different sprocket combinations, allowing you to select and fine tune the acceleration and top speed result perfectly based on your engine power and personal body weight.




● THIS 15/43 FINAL DRIVE GEAR SET CAN BE INSTALLED ON:

HONDA:

  • ADV160 4V eSP+ (JULY 2022- )
  • AIR BLADE 160 4V eSP+ (2022- )
  • CLICK160 4V eSP+ (2021- )
  • FORZA125 eSP+ (2021- )
  • GIORNO+ 125 4V eSP+ (2023- )
  • PCX125 4V eSP+ (2021- )
  • PCX150 4V eSP+ (USA) (2021- )
  • PCX160 4V eSP+ (2021- )
  • SH125 MODE 4V eSP+ (2021- )
  • SH125i 4V eSP+ (2020 )
  • SH150i DIGITAL SOHC 4V (2020 / 2021 / 2022 )
  • SH160i eSP+ (2023- )
  • STYLO160 eSP+ (FEB 2024- )
  • VARIO160 4V eSP+ (2021- )
