230CC B-TYPE SPECIAL SERIES INJECTOR

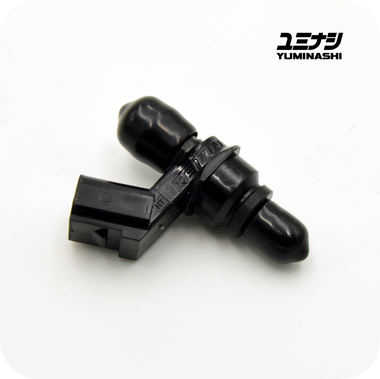

YUMINASHI 230CC B-TYPE SPECIAL SERIES INJECTOR (16450-B00-230)

Hover over image to zoom

  • YUMINASHI 230CC B-TYPE SPECIAL SERIES INJECTOR (16450-B00-230)
  • YUMINASHI 230CC B-TYPE SPECIAL SERIES INJECTOR (16450-B00-230)
  • YUMINASHI 230CC B-TYPE SPECIAL SERIES INJECTOR (16450-B00-230)
YUMINASHI
฿1,200.00
SKU:
16450-B00-230
Weight:
33.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

Sorry but this item is currently unavailable. Please check back at a later stage.

Buy in bulk and save

 Product Description

● YUMINASHI 230CC B-TYPE SPECIAL SERIES INJECTORbuying-2-discount-300pxl-.png

● This injector with a 230cc/min flow rate (+/- 5cc) is a step up injector for the 140cc "PCX150"  H-injector.

● If you have a 2-valve bike such as a GROM125, Z125 MONKEY, PCX125 or CLICK125, then this  B-type 230cc/min flow rate injector can be used starting from 130cc until a 165cc big bore kit.

The 130cc engine will have more torque with this 230cc/min injector installed because of the richer running engine, and the 165cc engine will have a better fuel economy because of the leaner running setup.

● If you have a 4-valve bike such as the FORZA125 or another 4-valve type engine, then the B-type 230cc/min flow rate injector can be used starting from a 120cc engine until a 130cc engine.

The 120cc engine will have more torque with this 230cc/min injector installed because of the richer running engine, and the 130cc engine will have a better fuel economy because of the leaner running setup.
For a 4-Valve 125cc engine we recommend to install a injector with a 150cc/min or 160cc/min flow rate.

※ Markings "125cc" or "135cc" could be visible on the 230cc/min B-type injector body and these are not related to the fuel flow rate/minute of the injector.
※ The flow/minute is tested of each and every injector before being shipped out (possible to smell injector testing liquid), and this based on a 3.2bar pressure which is the stock pressure of a new 110cc/125cc/150cc/160cc motorcycle or scooter.
※ We maintain a tolerance of 5% on these injectors.
※ The pressure of a ADV/SH/Forza 300/350 fuel pump is higher than 3.2bar, so the fuel flow rate/minute will be slightly higher as the flow rate advertised if installed on these scooters.


● E5 / E10 / E15 / E20 / E85 ETHANOL TUNING:

● If you would like to change to E5, E10, E15, E20 or E85 ethanol fuel, then you can use the list below to see how much of a larger fuel injector is required based on the E-fuel you want to use.
  (Example Forza300 change to E10 fuel: stock injector 235cc/min +3.53%= 243.3cc/min injector)

※ You can scroll all the way down on this page to know more about injector reading and to know the flow rate of the injector you have installed in your bike, to be able to calculate the new injector flow rate to run with ethanol...


● PERFECT DROP IN INJECTOR FOR FULL STOCK:

HONDA:

  • AIR BLADE 125i (ALL YEARS)
  • CLICK125i (ALL YEARS)
  • FORZA125 (ALL YEARS)
  • LEAD125 (ALL YEARS)
  • PCX125 (2012- )
  • PCX150 (ALL YEARS)
  • PCX150 HYBRID (2018- )
  • MODE 125 (ALL YEARS)
  • SH125i (2013- )
  • SH150i (2013- )
  • VARIO 125 (ALL YEARS)
  • VARIO 150 (ALL YEARS)

PIAGGIO:
(1D000698 Injector Type)

  • PIAGGIO Fly i.e. 3V (euro 3)        125    RP8M791 4T AC `12-
  • PIAGGIO Liberty 3V iGet              125    RP8MA4100 4T AC '16-'19
  • PIAGGIO Liberty 3V iGet              150    RP8MA4200 4T AC '16-'18
  • PIAGGIO Liberty i.e. 3V (euro 3) 125    RP8M 4T AC '13-'14
  • PIAGGIO Liberty i.e. 3V iGet        150    RP8M89 4T AC `16-
  • PIAGGIO Liberty i.e. 3V iGet        125    RP8M89 4T AC `16-

VESPA:
(1D000698 Injector Type)

  • VESPA 946 i.e. 3V                                            125    ZAPM80100                               4T AC ´13-´17
  • VESPA 946 i.e. 3V                                            125    ZAPMA7100                               4T AC ´16´17
  • VESPA 946 i.e. 3V                                            150    ZAPM802/ ZAPM808                   4T AC ´13-´16
  • VESPA 946 i.e. 3V 4T Emporio Armani Euro3 125    ZAPM80101                               4T AC '15
  • VESPA 946 i.e. 3V Euro4                                  125    ZAPM80101                               4T AC '16-'17
  • VESPA GTS i.e. 3V                                            150    RP8M45410                               4T LC `14-`15
  • VESPA GTS i.e. 3V                                            125    RP8M45310                               4T AC `13-
  • VESPA LT i.e. 3V                                               150    RP8M666                                   4T AC `14-
  • VESPA LT i.e. 3V                                               125    RP8M665                                   4T AC `13-`16
  • VESPA LX i.e. 3V / Touring                              125    ZAPM68300 / RP8M665/ RPM683 4T AC ´12-´13
  • VESPA LX i.e. 3V / Touring                              150    ZAPM68400/ RP8M66600            4T AC `12-`13
  • VESPA LXV i.e. 3V                                            125    RP8M66502/RP8M68302             4T AC `13-`16
  • VESPA Primavera i.e. 3V / Touring                 150    ZAPM81200 / ZAPM81201 / ZAPM818/ RP8M82 4T AC `13-`16
  • VESPA Primavera i.e. 3V / Touring                 125    ZAPM81101                                4T AC `13-`18
  • VESPA Primavera i.e. 3V / Touring                 125    ZAPM81100 / ZAPM81101 / RP8M82 4T AC `13-`16
  • VESPA Primavera i.e. 3V Euro4                       150    ZAPM81200                                4T AC `16-`17
  • VESPA Primavera i.e. 3V Euro4                       150    ZAPM81201                                4T AC `16
  • VESPA Primavera i.e. 3V Euro4                       125    ZAPM81100                                4T AC `16-`17
  • VESPA Primavera i.e. 3V iGet                          125    ZAPMA11 / RP8M825                   4T AC `16-
  • VESPA Primavera i.e. 3V iGet                          125    RP8M82500                                4T AC `16
  • VESPA Primavera i.e. 3V iGet Euro4               150    ZAPMA12 / ZAPMA1201 / RP8M822 4T AC `16-
  • VESPA S i.e. 3V                                                150    RP8M66601                                4T AC `12-`15
  • VESPA S i.e. 3V                                                125    ZAPM68301 / RP8M683 /RP8M665 4T AC `12-`15
  • VESPA Sprint i.e. 3V                                        150    ZAPM81401                                 4T AC `14-`16
  • VESPA Sprint i.e. 3V / Sport                           150    ZAPM814 / RP8M8                        4T AC `14-`16
  • VESPA Sprint i.e. 3V / Sport                           125    ZAPM81300 / ZAPM81301 / RP8M821 4T AC `14-`17
  • VESPA Sprint i.e. 3V iGet Euro4                      125    ZAPMA1300 / RP8M825                 4T AC `16-
  • VESPA Sprint i.e. 3V iGet Euro4                      150    ZAPMA1400 / RP8M82211              4T AC `16-


E85 FUEL STATION SEARCH:

● The benefits for engine tuners to run on E85, which is a 85% ethanol mixture, are very well known.
You can run much higher compression ratio's compared to a normal fuel and your engine makes a much cooler burn.
With our large selection of injector flow rates available it makes it really easy to make the conversion.

If you want to make a simple conversion then you first need to look how much cc/min flow you are actually running with your stock injector.
If your stock injector is 120cc/min (please scroll down how to read your injector below), and if you want to change your fuel in to E85, then we recommend to install a 156cc/min injector to have a good fuel economy, and a 190cc/min such as the 12 holes 190cc 4V series injector (which you can visit with this link) to have a richer running setup in combination with E85.

※ Rule of thumb here is the injector flow rate/min you have selected to run with normal fuel times 1.3 to get the flow rate/min with E85.
