175CC LIGHT BORE PISTON SET (MSX/GROM - WAVE125i - MONKEY 125)

YUMINASHI 175CC LIGHT BORE PISTON SET (MSX125 / GROM125) (13100-K26-6213A)

Hover over image to zoom

  • YUMINASHI 175CC LIGHT BORE PISTON SET (MSX125 / GROM125) (13100-K26-6213A)
  • YUMINASHI 175CC (62MM) PISTON RINGS WITH HARD CHROMIUM LAYER (Cr)
YUMINASHI
RRP: ฿3,500.00
฿1,250.00 (You save ฿2,250.00)
SKU:
13100-K26-6213A
Weight:
250.00 Grams
Availability:
Estimated to be shipped in one week (http://www.yuminashi.eu/shipping-returns/)
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

Sorry but this item is currently unavailable. Please check back at a later stage.

Buy in bulk and save

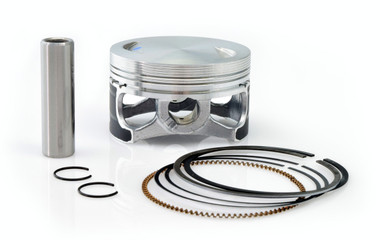

 Product Description

● buying-2-discount-300pxl-.png175CC FLAT TOP PISTON SET (62MM / 13MM PIN)

● 175cc Light Bore piston set is made with molybdenum coating to be installed on the stock 125cc cylinder head and crankshaft.

The high grade Yuminashi piston rings that come with the set are developed and produced by very strict Japanese standards and all rings are treated with a hard chromium plating layer (Cr) as shown on this page.

● The aluminium is AA-Grade so if you cut this aluminium it won't crumble while you are cutting like a cheap piston would do, but you will be able to make really nice spirals while you are cutting/machining the piston.

The pistons are finished with a black molybdenum coating on the sides of the piston.

※ Make sure your cylinder bore is 62.04mm! (acceptable tolerance is +0.01mm)...

● These pistons are plug & play ready to be installed on:

- Honda MSX/GROM125
- Honda MSX/GROM125 SF
- Honda BLADE 125 FI
- Honda SUPRA X 125 PGM-FI
- Honda WAVE 125 (2013 - )
- Honda BIZ125 (2013 - )
- Honda Super Cub C125
- Etc...

※ Since the YUMINASHI 150cc, 162cc and 175cc kits have been made with slightly different cylinder heights we recommend to check, and to make sure that the deck clearance with the piston at Top Dead Center (TDC) is at least 0.3mm.

Please notice that you need to measure the deck clearence with the cylinder head nuts tightened to 24 N·m (2.4 kgf·m, 18 lbf·ft) torque to have the correct pressure on the cylinder.

If the deck clearance is less then 0.3mm then a easy solution is to install an extra cylinder gasket under the cylinder.

budget-logo-2.png SMART SHOPPER TIP:

       ※ BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
