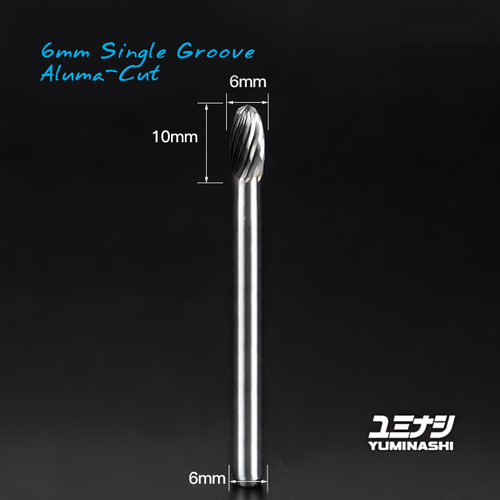

Name: 6MM SINGLE-GROOVE ALUMA-CUT TUNGSTEN CARBIDE BURR (6MM SHANK)
Brand: YUMINASHI
SKU: 6MM-ALUMA-CUT
Price: 159.7 ZAR
Availability: InStock

Description

● 6MM SINGLE-GROOVE ALUMA-CUT TUNGSTEN CARBIDE BURR (6MM SHANK) (6MM-ALUMA-CUT)

● This high quality YUMINASHI Single-Groove Aluma-Cut Tungsten Carbide Burr with 6mm shank is the perfect cutting tool for a cylinder head porting job.

※ The optional 8mm Single-Groove Aluma-Cut tungsten Carbide Burr with 6mm shank is also available, which will do a faster job in removing material from your manifold, but isn't recommend to use later on for a intake porting job.
※ Recommend to finish the manifold with the 6mm Aluma-Cut carbide burr when you are using the 8mm carbide burr!

● WHY THE 6MM SINGLE-GROOVE ALUMA-CUT BURR IS THE ULTIMATE TOOL FOR CYLINDER HEAD PORTING?

When it comes to porting cylinder heads and modifying intake tracts, choosing the right tool makes the difference between gaining horsepower or ruining a costly casting. While a double-cut (cross-hatch) or a larger burr might seem like a faster choice on paper, specialized aluminum porting requires a specific geometry.

● Here is why our 6mm Single-Groove Aluma-Cut Tungsten Carbide Burr is the professional standard for cylinder head modification:

1. Single-Groove (Aluma-Cut) vs. Cross-Hatch: The Aluminum Myth

● A common misconception is that a cross-hatch (double-cut) burr cuts faster because it has more teeth.
While this is true for hard metals like cast iron or steel, it is completely wrong for aluminum.

- The Cross-Hatch Problem: Aluminum is a soft, gummy metal. When you use a cross-hatch burr, the tiny spaces between the teeth quickly become clogged and packed with aluminum chips (known as "loading"). Once loaded, the burr stops cutting entirely; it begins to slide, friction increases, heat builds up, and you risk damaging the surface.

- The Aluma-Cut Solution: Our single-groove Aluma-Cut geometry features deep, wide, and aggressive flutes. Instead of grinding the metal into dust, it slices off large, clean aluminum chips and ejects them instantly. This prevents clogging, keeps the tool cutting cool, and actually removes material significantly faster than a cross-hatch burr ever could on aluminum

2. Why Use Aluma-Cut Tungsten Carbide?

● Tungsten carbide is one of the hardest materials available, meaning these burrs maintain their razor-sharp cutting edges even after hours of high-RPM use with a die grinder.
The specific "Aluma-Cut" design ensures that you don't have to apply massive pressure—the tool geometry does the heavy lifting, giving you a smooth, effortless cutting experience without chattering.

3. The Crucial Role of a 6mm Diameter in Cylinder Head Porting

● Cylinder head porting is a game of precision, air velocity, and boundary layer control. It is not just about making the hole bigger; it is about making the shape better.

- Surgical Precision: The 6mm cutting diameter is the sweet spot for head porting. It allows you to navigate the tightest areas of the port—such as the critical short-side radius, valve bowls, and around the valve guide bosses—with complete visibility and control.

- Preventing Costly Mistakes: In small-displacement or high-performance heads, port walls can be incredibly thin. A 6mm burr gives you the fine touch needed to shape the port without accidentally digging too deep, breaking through into a water jacket, or ruining the port velocity profile.

4. Why Not Just Use an 8mm Burr? (The Multi-Tool Strategy)

● An 8mm burr will certainly hog out material faster, but bigger isn't always better inside a cylinder head port.

- The Risks of 8mm in a Port: An 8mm burr is often too bulky for internal port work. It reduces your visibility, bounces around in tight radiuses, and removes material too aggressively, making it very easy to over-port and ruin the cylinder head's airflow characteristics.

- The Perfect Workflow (Manifold vs. Head): * Use an 8mm Burr for: Roughing out heavy material on intake manifolds, opening up large plenum spaces, or matching large gaskets where tight clearance isn't an issue.

- Use this 6mm Burr for: Finishing the manifold transition and performing all internal cylinder head modifications. Stepping down to the 6mm Aluma-Cut burr allows you to seamlessly blend the cuts, remove the coarse marks left by larger tools, and achieve a highly uniform, smooth surface finish that optimizes airflow.
