95L STD FORGED CONNECTING ROD / 14-PIN (PCX150 / SH150i / CLICK150i / VARIO150)

Hover over image to zoom

  • 95L FORGED CONNECTING ROD / 14-PIN (PCX150 / SH150i / CLICK150i / VARIO150) (06381-KZY-900R)
  • 95L FORGED CONNECTING ROD / 14-PIN (PCX150 / SH150i / CLICK150i / VARIO150) (06381-KZY-900R)
  • 95L FORGED CONNECTING ROD / 14-PIN (PCX150 / SH150i / CLICK150i / VARIO150) (06381-KZY-900R)
  • 95L FORGED CONNECTING ROD / 14-PIN (PCX150 / SH150i / CLICK150i / VARIO150) (06381-KZY-900R)
  • 95L FORGED CONNECTING ROD / 14-PIN (PCX150 / SH150i / CLICK150i / VARIO150) (06381-KZY-900R)
  • 95L FORGED CONNECTING ROD / 14-PIN (PCX150 / SH150i / CLICK150i / VARIO150) (06381-KZY-900R)
YUMINASHI
฿1,650.00
SKU:
06381-KZY-900R
Weight:
150.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays and Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

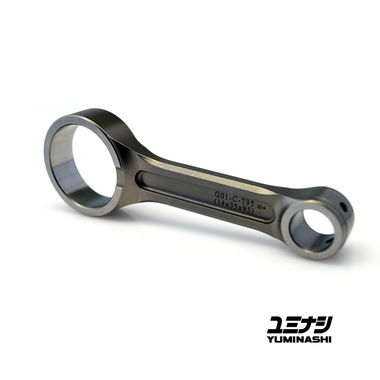

buying-2-discount-300pxl-.png● 95L STD FORGED CONNECTING ROD / 14-PIN (14 X 35 X 95)

● Standard/stock length forged connecting rod (95L) to be used with high performance and racing applications.

This connecting rod can be used in combination with big pistons, or forged pistons which are typically much heavier compared to cast pistons.

● The distance from center to center is 95mm (95L), the big-end inner diameter is 35mm, the small-end diameter is 14mm.

This forged connecting rod can be installed on any 125 and 150 "PCX" type crankshaft, keep in mind that this connecting rod need to be installed with a 14mm piston pin and piston!

We don't recommend to use this connecting rod length (95L) to stroke up your crankshaft.
Please visit the category "Stroker Parts" for your specific scooter type, and select one of these connecting rods then which would be a better choice / more suitable to stroke up your engine.

OPTIONAL:

- STD BIG END NEEDLE BEARING (LINK)
- SPL BIG END NEEDLE BEARING (FOR OFFSET STROKER PINS) (LINK)

 The forged connecting rods can not be installed with the stock/standard Honda Ø28 x 36 x 14mm needle bearings!...

● These are the stroke-up connecting rods lengths we have available for your scooter type:

  • 96L (14 X 35 X 96)
  • 97L (14 X 35 X 97)
  • 100L (14 X 35 X 100)

Installing the 100L conrod on the STD stroke crankshaft would make really good power!
Your cylinder head would breath better because your piston spend more time at top dead center, and you could make your piston also shorter/lighter then...

● This connecting rod is mentioned to be installed on these 150 engines:

  • HONDA ADV150      (2019- )
  • HONDA PCX150      (2012 - )
  • HONDA SH150i       (2013 - )
  • HONDA CLICK150i  (2018 - )
  • HONDA VARIO 150 (2015 - )
  • ROYAL ALLOY GP150

● This connecting rod can also be installed on these 125 engines:

  • Honda AIR BLADE125               (ALL)
  • Honda CLICK125i                      (ALL)
  • Honda LEAD125                        (2013 - 2022)
  • Honda PCX125                          (2012- )
  • Honda SH125i                              (2013- )
  • Honda SH125i MODE                  (2014- )
  • Honda VARIO 125 / VARIO TECHNO 125  (ALL)
  • LAMBRETTA V125
  • ROYAL ALLOY GP125
  • ROYAL ALLOY GT125
  • ROYAL ALLOY TG125
  • SCOMADI TECHNICA 125i (CUTDOWN)
  • SCOMADI TL125
  • SCOMADI TT125i

※ The Honda 125 engines (and Scomadi, Royal Alloy, Peugeot, Lambretta and GY6 125 &150 engines) need to install additionally a piston with a 14mm piston pin in combination with this connecting rod!
