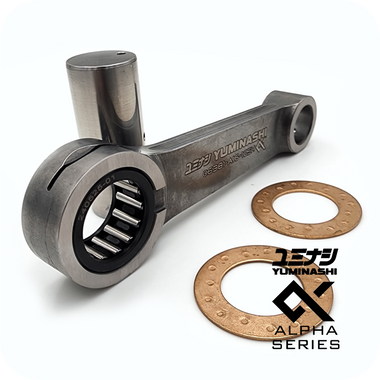

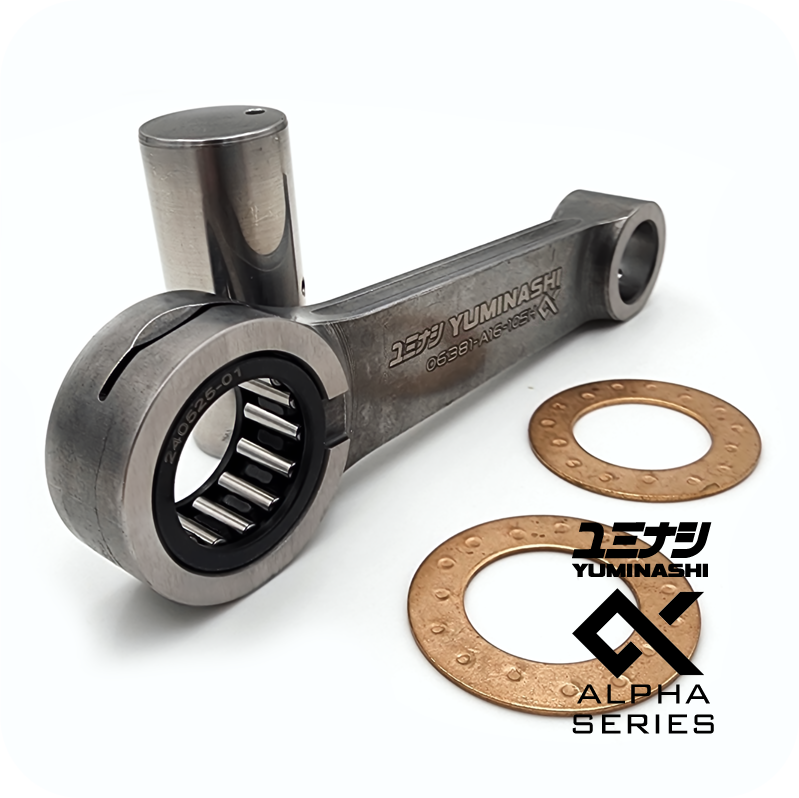

104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (YUMINASHI 71.9MM STROKE ALPHA CRANKSHAFT)

104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (YUMINASHI 71.9MM STROKE ALPHA CRANKSHAFT) (06381-A16-105H)

Hover over image to zoom

  • 104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (YUMINASHI 71.9MM STROKE ALPHA CRANKSHAFT) (06381-A16-105H)
  • 104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (YUMINASHI 71.9MM STROKE ALPHA CRANKSHAFT) (06381-A16-105H)
  • 104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (YUMINASHI 71.9MM STROKE ALPHA CRANKSHAFT) (06381-A16-105H)
  • 104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (YUMINASHI 71.9MM STROKE ALPHA CRANKSHAFT) (06381-A16-105H)
  • 104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (YUMINASHI 71.9MM STROKE ALPHA CRANKSHAFT) (06381-A16-105H)
YUMINASHI
฿3,795.00
SKU:
06381-A16-105H
Weight:
400.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● YUMINASHI 104.5L / 16-PIN FORGED H-BEAM ALPHA CONROD SET (FOR YUMINASHI 71.9MM/2.8307INCH STROKE ALPHA CRANKSHAFT) (06381-A16-105H)

● This forged H-Beam connecting rod comes installed on the Forged YUMINASHI ALPHA 71.9mm/2.8307inch stroke crankshaft, used in the OG/SF GROM125/MSX125 -Z125 MONKEY - CT125 - WAVE125 - NICE125 - etc. engine/platform (YUMINASHI billet CNC Factory 300cc 4V ALPHA crate engine).

● The core of the YUMINASHI brand is to deliver high-performance components combined with durability and reliability.

● We believe that in the case of the YUMINASHI ALPHA 72mm/2.835inch Super Bore engines, we can talk with ease about "extreme performance", and where YUMINASHI by using this forged H-beam crankshaft can offer the reliability on the 125cc engine platform that YUMINASHI is known for.

If you want to compare this connecting rod with something, then you could say that if you are familiar with the products of our colleagues from KITACO, that the YUMINASHI ALPHA connecting rod is the beefed up version of the KITACO Neo forged connecting rod.

● YUMINASHI is selling this connecting rod as a complete set, with a Ø22mm big-end pin, to be used as a replacement for the YUMINASHI crankshaft, or as a custom, non stock conrod to create a new Super bore engine.

※ CAN NOT BE INSTALLED IN A STOCK ENGINE! Since the YUMINASHI H-Beam connecting rod is longer and wider than stock, there will be cylinder skirt interference with stock cylinder kits or kits under 200cc. The YUMINASHI H-Beam reinforced connecting rod is designed to be used with cylinder kits that is at least 66mm bore (200cc and up).
※ YUMINASHI has the smaller version of this conrod available for 60mm bore (164cc and up).

● CONROD DIMENSIONS:

  • BIG-END DIAMETER: 29MM
  • SMALL END DIAMETER: 16MM
  • LENGTH CENTER TO CENTER: 104.5MM
  • BIG-END PIN DIAMETER: 22MM
  • BIG-END PIN LENGTH: 52.25MM
  • BIG-END BEARING: 22x19x16MM

budget-logo-2.png SMART SHOPPER TIP:

       ※ BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
