30MM THROTTLE BODY UPGRADE SET (Z125 PRO - PCX125/150 - ADV150 / ETC...)

YUMINASHI 30MM THROTTLE BODY UPGRADE SET (Z125 PRO - PCX125/150 - ADV150 / ETC...) (16410-K36-030)

Hover over image to zoom

  • YUMINASHI 30MM THROTTLE BODY UPGRADE SET (Z125 PRO - PCX125/150 - ADV150 / ETC...) (16410-K36-030)
  • YUMINASHI 30MM THROTTLE BODY UPGRADE SET (Z125 PRO - PCX125/150 - ADV150 / ETC...) (16410-K36-030)
  • YUMINASHI 30MM THROTTLE BODY UPGRADE SET (Z125 PRO - PCX125/150 - ADV150 / ETC...) (16410-K36-030)
YUMINASHI
฿1,690.00
SKU:
16410-K36-030
Weight:
360.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

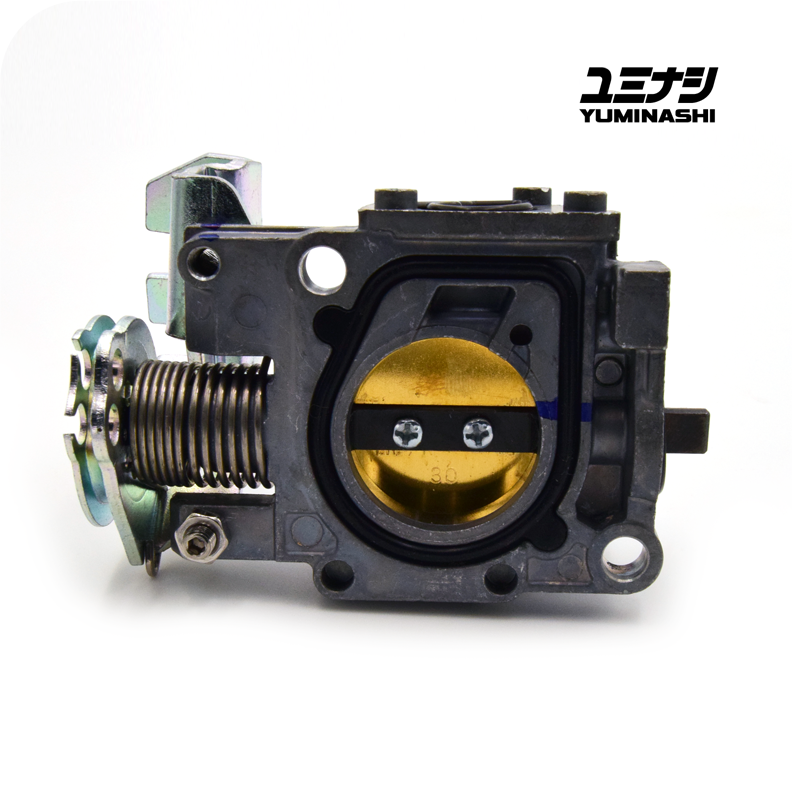

buying-2-discount-300pxl-.png● 30MM KEIHIN THROTTLE BODY UPGRADE SET
   (FOR STOCK TP SENSOR & IACV SENSOR)

● The Keihin 30mm Throttle Body Upgrade Set comes complete with a new O-rings set, throttle cable bracket (for ADV150 - FORZA125 - PCX125/150 '14-'21) and is mentioned to be installed with the stock TP sensor and IACV valve of your stock throttle body.

※ If your scooter/motorcycle is younger than 2014, and isn't listed below, then this means that your throttle body doesn't have an IACV valve installed which is the case on scooters such as the CLICK/VARIO 125 & 150 / AIRBLADE 125 & 150. In that case you need to install the manual IACV valve then which you can vist with this LINK.

※ If your stock throttle body doesn't have an 5-pin IACV valve installed, then you won't have a 5-pin connector to connect the MAP sensor, and this means that you also need to install a wiring loom then to connect the PCX150 5-pin TP-sensor to your stock 3-pin TP sensor connector on your wiring harness, together with the PCX150 LED TP-sensor type (HONDA OEM 16060-K35-V01).

※ If your bracket is another one as installed on this throttle body, then you can remove your stock bracket and install it on the 30mm throttle body, it will fit no worries...

※ The stock sensor block from the Kawasaki bikes Z125 and Z125 Pro can be installed on this throttle body, it's plug and play ready so you don't need to buy another sensor block and/or wire loom....


● THIS 30MM THROTTLE BODY IS MENTIONED TO BE INSTALLED ON:

  • KAWASAKI Z125 (2016- )
  • KAWASAKI Z125 PRO (2016- )
  • HONDA ADV150 (2019- )
  • HONDA C125 SUPER CUB (2018/2019/2020)
  • HONDA C125 SUPER CUB (2021- )
  • HONDA CT125 HUNTER CUB (2020- )
  • HONDA FORZA125 (2015-2017) ※ Need to be installed with the 30mm 4-valve manifold set LINK.
  • HONDA FORZA125 (2017) ※ Need to be installed with the 30mm 4-valve manifold set LINK.
  • HONDA FORZA125 (2018-2021) ※ Need to be installed with the 30mm 4-valve manifold set LINK.
  • HONDA PCX125 LED / SMART KEY (2015 / 2016 / 2017)
  • HONDA PCX125 DIGITAL (2018 / 2019 / 2020)
  • HONDA PCX150 LED & SMART KEY (2015 / 2016 / 2017)
  • HONDA PCX150 DIGITAL (2018 / 2019 / 2020)
  • HONDA CB125R 4V (2021- ) (※ Need to be installed in combination with the SPL Throttle Body Center Bolts Set (LINK))
  • HONDA CB150R (2017- ) (※ Need to be installed in combination with the SPL Throttle Body Center Bolts Set (LINK))
  • HONDA CBR150R (2019- ) (※ Need to be installed in combination with the SPL Throttle Body Center Bolts Set (LINK))
  • HONDA RS 150R (FS150FH) (2015- ) (※ Need to be installed in combination with the SPL Throttle Body Center Bolts Set (LINK))
  • HONDA SH125 LED/SMART KEY (2017 / 2018 / 2019 / 2020)
  • HONDA SH150 LED/SMART KEY (2017 / 2018 / 2019 / 2020)
  • HONDA SUPER CUB C125 (2018- )
  • HONDA SONIC 150 / RS10R (2015- ) (※ Need to be installed in combination with the SPL Throttle Body Center Bolts Set (LINK))
  • HONDA WINNER 150 (2016- ) (※ Need to be installed in combination with the SPL Throttle Body Center Bolts Set (LINK))
  • HONDA SUPRA GTR 150 (2016- ) (※ Need to be installed in combination with the SPL Throttle Body Center Bolts Set (LINK))

※ This throttle body need to be installed on a 30mm larger manifold (for PCX125/150 - CLICK125/150 - ADV150 - SH125/150 LED click this LINK), it can not be used in combination with the stock manifold!
※ This throttle body need to be installed with a 45mm air filter (LINK), or on PCX engine style scooters with the Big Tube Air Intake Set (LINK)
**Best result performance wise will be achieved with the 45mm double layer foam air filter...

budget-logo-2.png SMART SHOPPER TIP:

       ※ BUYING MORE THEN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
