HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RETAINER SET (NAVI110 / ACTIVA110 G3)

Hover over image to zoom

  • Image 1
  • YUMINASHI HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RETAINER SET (NAVI110 / ACTIVA110 G3) (14751-KWP-DVSS)
  • YUMINASHI HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RETAINER SET (NAVI110 / ACTIVA110 G3) (14751-KWP-DVSS)
  • YUMINASHI HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RETAINER SET (NAVI110 / ACTIVA110 G3) (14751-KWP-DVSS)
  • YUMINASHI HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RETAINER SET (NAVI110 / ACTIVA110 G3) (14751-KWP-DVSS)
YUMINASHI
฿1,550.00
SKU:
14751-KWP-DVSS
Weight:
66.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

buying-2-discount-300pxl-.png● YUMINASHI HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RETAINER SET (NAVI110 / ACTIVA110 G3)

● Dedicated YUMINASHI double valve spring & retainer set for the NAVI110/ACTIVA110 cylinder heads to run high RPM's with stock and higher degrees / lift camshafts.

● Nothing more annoying then to figure out after removing the RPM limit on your NAVI, that your valve springs can't handle it!...

● The YUMINASHI valve springs for the NAVI110/ACTIVA110 are progressive valve springs, which means the deeper they go, the stronger they become.

● These valve springs are also high lift valve springs, and this means that the distance between each of the coils are specifically calculated and worked out to avoid coil bind with high lift camshafts.

● These springs can handle a maximum lift of 13.61mm (0.53582inches) measured from a rest position.
About 1.52mm (0.060 inch) used to be the textbook safety margin, with more OK, which can be less now with modern spring technology, and with this in mind we can state that these progressive valve springs are perfectly safe and recommended to be used in combination with the YUMINASHI 240° (LINK) and 250° camshafts with a 7.52mm Intake lift and a 7.47mm exhaust lift...

● The special retainers in the set are again designed to handle a much larger lift compared to stock, this creates again an extra margin between the retainer and the valve guide on the stock cylinder head.

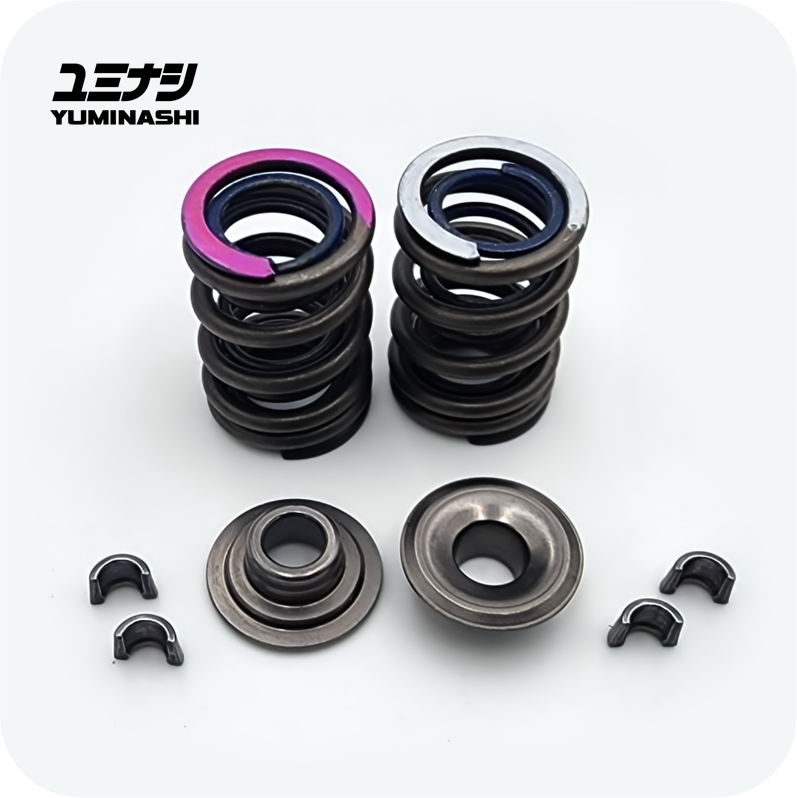

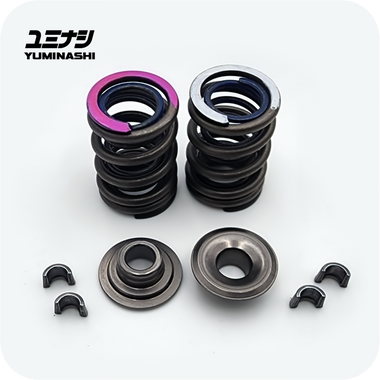

● THIS HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RATAINER SET COMES COMPLETE WITH:

  • 2 X Outer Springs
  • 2 x Inner Springs
  • 2 x High Lift Retainers
  • 4 x Valve Cotters


● YUMINASHI POWERFUL NAVI110 COCKTAIL INGREDIENTS:


  • RACING DIGITAL CDI UNIT 30410-K74-N81R (LINK)
  • SS240 SUPER SPORT CAMSHAFT 14100-KWP-240D (LINK)
  • HIGH LIFT PROGRESSIVE DOUBLE VALVE SPRING & RETAINER SET 14751-KWP-DVSS (LINK)
  • 24MM YUMINASHI / KEIHIN TYPE-1 PE24 CARBURETOR (#112/#38/#2.5) 16100-1KC-KBP (LINK)
  • 24MM MANIFOLD SET FOR KEIHIN PE24 CARBURETOR 17110-K74-N24 (LINK)
  • FOAM AIRFILTER
  • 125CC (53MM / 3.00) LIGHT BORE UP PISTON 13101-KWP-D53 (CHERRY ON THE CAKE, TO BORE THE STOCK NAVI CYLINDER BLOCK/BARREL UP TO 125CC) (LINK)
  • 125CC 53MM (0.6MM) COPPER HEAD GASKET SET 12251-KWP-D53CS (LINK)

budget-logo-2.png SMART SHOPPER TIP:

        BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
