12200-K2S-GT4S | 22/19MM GT4S 4V PERFORMANCE HEAD (FOR 60/62/63MM CYLINDERS | eSP+ 125, 150, 160CC)
Brand : YUMINASHI | GT4S
- SKU:
- 12200-K2S-GT4S
- Availability:
- Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
- Weight:
- 2,350.00 Grams
- Minimum Purchase:
- 1 unit
- Shipping:
- Calculated at Checkout
● YUMINASHI GT4S 4V PERFORMANCE HEAD (22/19MM) (FOR eSP+ 125CC / 150CC / 160CC 4V ENGINES) (12200-K2S-GT4S)
● This YUMINASHI cylinder head was introduced as the GT220 4V PERFORMANCE HEAD, and has been upgraded with a name change into the GT4S PERFORMANCE HEAD, and included now new Roller Rockers, Titanium Retainers, Reinforced Valve Springs, a large Cylinder Head Plate in the set, etc...
※ This cylinder head was upgraded, and had the name changed from GT220 into GT4S, the part number 12200-K2S-N22R has been superseded by part number 12200-K2S-GT4S.
● Every stock eSP+ engine (125cc, 150cc & 160cc) has the 20/17mm K40 125cc valves installed from the 2015 FORZA125.
● The 2mm larger intake valves from the GT4S Head allowing more air into your engine, and the 2mm larger exhaust valves result in a cooler running engine, certainly when a higher compression piston is installed with perhaps a long stroke crankshaft.
● Coated Martensitic Stainless Steel valves are used in this cylinder head, which is a type of stainless steel alloy that has a martensite crystal structure. It can be hardened and tempered through aging and heat treatment, and the stainless steel alloy is non-magnetic because of the austenitic crystal structure.
● In this way, the desirable properties of each material is optimized. These include, high temperature corrosion resistance in the austenitic stainless steels of the head, and high tensile strength and abrasive wear resistance in the martensitic stainless steel of the stem.
● YUMINASHI has chosen for this technique which is used in medium to high stressed exhaust valves, and in high stressed intake valves to deliver a high performance high reliability product.
● The intake and exhaust ports from the YUMINASHI GT4S 4V PERFORMANCE HEAD are fully CNC flow ported to get the best possible result out of your 60 / 62 or 63mm bore engine.

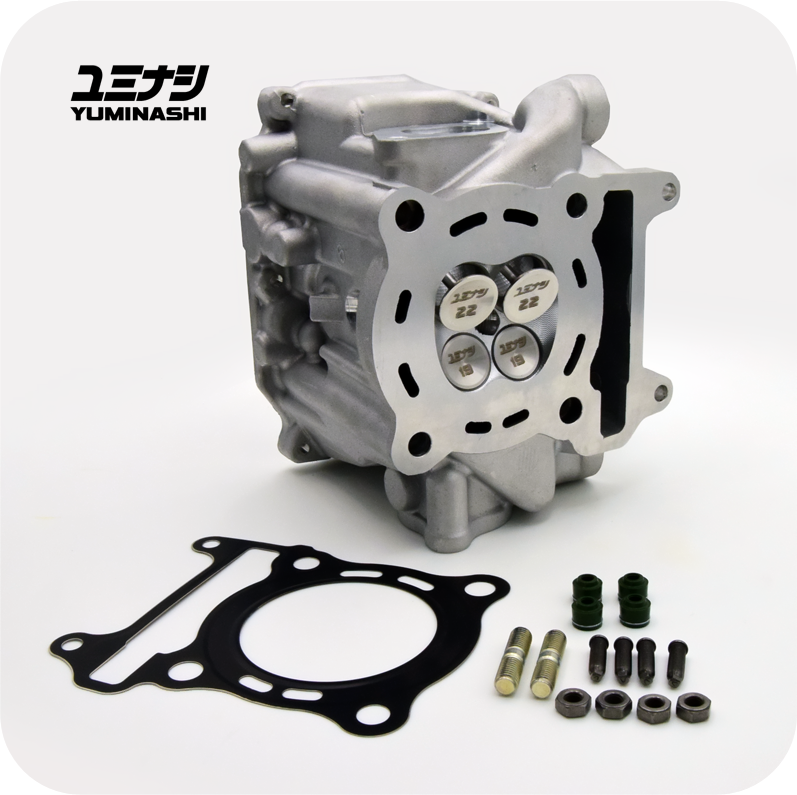

● The head comes complete with the YUMINASHI 22/19MM BIMETAL STAINLESS COATED VALVE SET in the box together with 4 valve stem seals, 4 tappet adjusting screws & nuts and 2 reinforced M8 exhaust bolts M8x28mm with M8 nuts and the large inner diameter (Ø34x28MM) exhaust gasket in the set.
※ This cylinder head can be used with the stock manifold and throttle body, but you will get better results with a 32mm throttle body and manifold set in combination with this head.
※ The large inner diameter (Ø34x28MM) YUMINASHI Aluminium Exhaust Gasket 18291-GE2-921R which comes with this head need to be installed in combination with this cylinder head! (LINK)
※ This cylinder head can be used on a 60mm /62mm and 63mm bore, but don't include a cylinder head gasket!
A cylinder head gasket is included in every cylinder kit you order from us, but if you would like to have a cylinder head a gasket with the cylinder head, then you can order it optionally with this link... (LINK)
● TEST VIDEO, 23/20MM vs 22/19MM HEAD & 15/44T vs 14/42T GEAR SPROCKETS (WITH STOCK LIMITER AT 9,500RPM):
● 62MM BORE GT220 INGREDIENTS SHOPPING LIST:
- 62MM GT4S Cylinder Kit | 12100-K0S-V62R | LINK
- GT4S 22/19mm Cylinder Head | 12200-K2S-GT4S
- GT4 SUPER Sports Camshaft | 14100-K0S-GT4 | LINK
- 34MM GT4S Head Throttle Body & Manfifold Set | 16410-K0R-34GT4 | LINK
- 170CC B-Type Injector | 16450-B08-5ED | LINK
- 45MM-51MM Stainless Hose (Size 2) With 90° & Straight Connector (※ ADV160 | CLICK160 | PCX125/160 ONLY) | 17570-K1Z-252 | LINK
- VARIATOR & GEAR SPROCKETS:
- ADV160: STD Torque Control Variator Set | 22110-K1Z-J10S LINK | 14/43T Final Drive Gear Set LINK (NO SHAFT) / LINK (WITH SHAFT) | MOTUL-F875 Gear Oil LINK
- CLICK160/VARIO160: 14T Torque Control Variator Set LINK
- PCX125: STD Torque Control Variator Set | 22110-K1Z-J10S LINK | 15/43T FINAL DRIVE GEAR SET LINK (NO SHAFT) / LINK (WITH SHAFT) | MOTUL-F875 Gear Oil LINK
- PCX160: STD Torque Control Variator Set | 22110-K1Z-J10S LINK | 14/42T FINAL DRIVE GEAR SET LINK (NO SHAFT) / LINK (WITH SHAFT) | MOTUL-F875 Gear Oil LINK | SPL Speed Sensor LINK - 1500RPM TRE-Torque Spring Set | Yellow Spring | 23233-K1Z-TRE2 | LINK
- EXHAUST:
- ADV160: Sound Adjust Stage-2 Exhaust System & Heatshield Combo | 18300-K1Z-SA2C | LINK (※ CAN ONLY BE INSTALLED WITH 1 OF THE 3 BOLTS ON ADV160)
- CLICK/VARIO160 | PCX125/160: YUMINASHI Sound Adjust Stage-2 Exhaust System | 18300-K1Z-SA2 | LINK
● THE YUMINASHI GT4S 4V PERFORMANCE HEAD (22/19MM) CAN BE INSTALLED ON THESE ENGINES:
HONDA:
- AIR BLADE 160 4V esp+ (2022- )
- ADV160 eSP+ (JULY 2022- )
- CLICK 160 / VARIO 160 4V eSP+ (2021- )
- GIORNO+ 4V eSP+ (2023- )
- PCX125 4V (eSP+) (2021- )
- PCX160 4V (a.k.a. PCX150 4V USA) (eSP+) (2021- )
- SH125 MODE 4V eSP+ (2021- )
- SH125i 4V eSP+ (2020- )
- SH150i DIGITAL SOHC 4V eSP+ (2020- )
- STYLO 160 4V eSP+ (FEB 2024- )
- LEAD 125 4V eSP+ (2022- )
- FORZA 125 (2015 - 2017 / 2017 / 2018 - 2021)
- FORZA 125 eSP+ (2021- )
