32MM THROTTLE BODY SET (LEAD125 & AIR BLADE 125 LED) (2016- )

Plug & play set to be installed on the Air Blade LED!..

Hover over image to zoom

  • Plug & play set to be installed on the Air Blade LED!..
  • Plug & play set to be installed on the Air Blade LED!..
  • Plug & play set to be installed on the Air Blade LED!..
  • Plug & play set to be installed on the Air Blade LED!..
YUMINASHI
RRP: ฿6,530.00
฿5,830.00 (You save ฿700.00)
SKU:
16400-K66-032B
Weight:
560.00 Grams
Availability:
Estimated to be shipped in one week (http://www.yuminashi.eu/shipping-returns/)
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

● YUMINASHI /KEIHIN 32MM THROTTLE BODY SET FOR HONDA SH MODE 125, LEAD125 & AIR BLADE LED (2016- )!


Because the best is only good enough!

With the new model 32mm throttle body the YUMINASHI R&D worked a TOTAL SOLUTION out that covers all issues with upgrading from the stock throttle body in to a larger version which is usually in combination with a big bore kit.

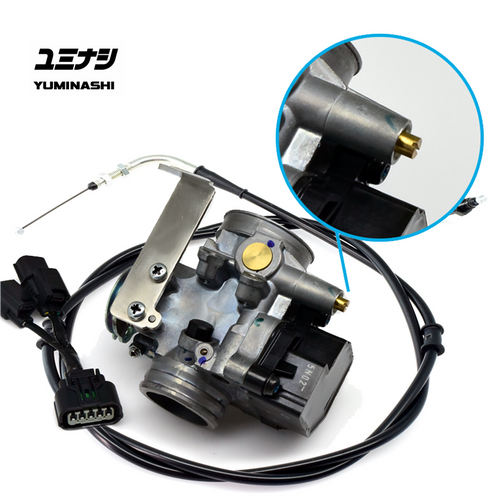

The first very noticeable difference compared to the formal model is that the IACV valve is gone, and has been replaced by an air adjust screw in the same fashion as you can find them in a carburetor. Like this it's really easy to get your idle mixture right and with this you actually hit two birds with one stone since this is also the solution for a sometimes hard to start engine like a SH MODE 125, AIR BLADE 125i LED or LEAD125 with a 164cc or 175cc kit installed.

If your electric starter have a hard time to make your engine turn, then adjust the air screw on the new throttle body, give it some adjustments with turning the air screw to the right, and you will see that your electric starter have no problem what so every anymore to turn your crankshaft around and to start your engine.


The new stainless steel bracket/throttle cable holder (which can be ordered as a separated part over here), is installed on the new 2018 throttle body to make your install as easy as possible.


 The 32mm throttle body comes with the SPECIAL YUMINASHI SENSOR BLOCK INSTALLED to allow easy AFR tuning/rpm pickup when cruising around and whacking the throttle open without any hiccups, the torque will be right there!


A stock CBR150R throttle body can be used as an alternative, and many vendors are selling these all over the world, but it’s really hard to get your tune right, certainly with the stock ECU installed.
With the Yuminashi 32mm throttle body, the stock AIR BLADE 125i LED ECU can be used because of the specific special installed Yuminashi sensor block!

The main reason for the Yuminashi R&D to start with an improvement on the 35mm, and also on this Yuminashi 32mm throttle body, was to solve the issue of tending to run very rich while running lower RPM's on a stock ECU and this with about any injector type.

It was very hard then to pick up the RPM's if you suddenly open full throttle. The formal generation 35mm throttle body was also tended then to run quiet lean in the higher RPM region where we want to see the opposite actually with a well balanced air fuel ratio engine, so the use of the newly developed sensor block is utmost recommended!...

The 3 connector wire loom which comes with the set makes it really easy to connect the throttle body to your stock wire harness.
The 5 pin connector connects on the large TP sensor on the throttle body, the 3 pin connector connects to your wire harness, and the 2 pin connector connects to your AIR BLADE 125 LED Intake Air Temperature sensor.


A new throttle cable is included in the set to ensure you a truly plug and play experience on your AIR BLADE 125i LED.




** This throttle body need to be installed with the B-type manifold set 17111-KZR-000SC which you can explore over here.

*** For best performance we recommend to install the 17253-KWN-000 Big Tube Air Instake Set to be installed on the stock airbox (Click here)
(airbox diameter need to be modified).
