32MM THROTTLE BODY (CLICK125 - MSX/GROM125 - Z125 MONKEY - CRF110F...)

32MM LARGE STYLE THROTTLE BODY (CLICK125 - MSX/GROM125 - Z125 MONKEY - CRF110F...) (16400-K26-032X)

Hover over image to zoom

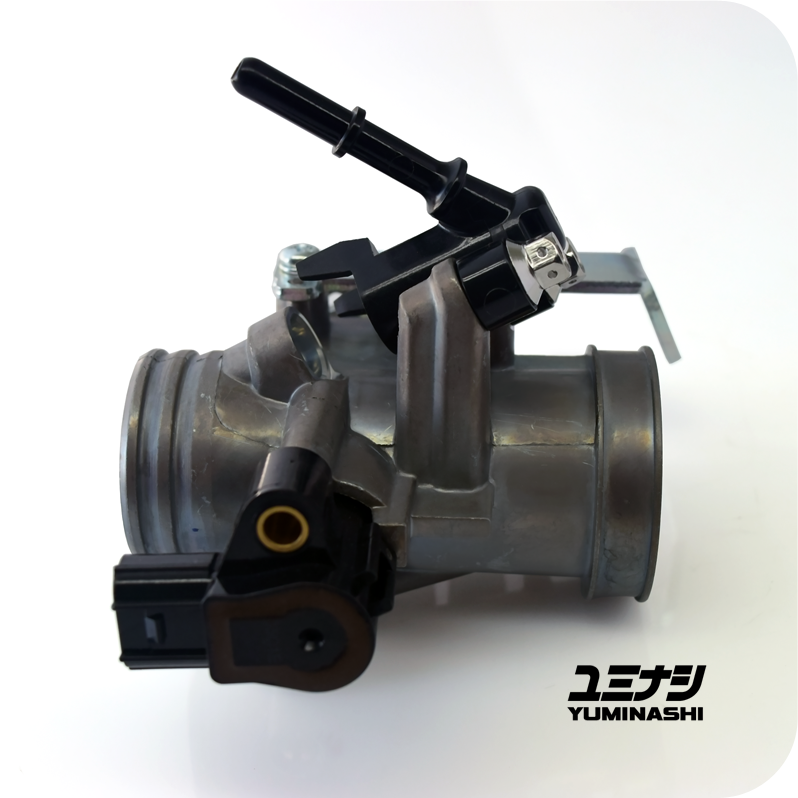

  • 32MM LARGE STYLE THROTTLE BODY (CLICK125 - MSX/GROM125 - Z125 MONKEY - CRF110F...) (16400-K26-032X)
YUMINASHI
฿2,995.00
SKU:
16400-K26-032X
Weight:
355.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● Ø32MM 2021-TYPE LARGE STYLE YUMINASHI THROTTLE BODY (MSX/GROM125 - Z125 MONKEY - CRF110F...)

● The large style throttle body type is well known for having the biggest potential to generate the most horsepower.
The downside however from these throttle bodies is that they usually are using a 5-pin connector with a large type of TP/MAP sensor block installed.
This large type of TP/MAP sensor block makes them not only really expensive, but also a kind of impractical because you can't install them without using an additional 5-pin to 3-pin wire loom, and this on most of the 110i and 125i engines.

● With the new 2021 version large style throttle body Yuminashi has worked the solution out with a blend of the normal large throttle body in combination with the stock 3-pin TP connector to make this new throttle body type a real plug and play experience without any wiring loom involved.
It comes also with a very easy to use manual idle air screw, which you also see on stock 110 and 125 throttle bodies, so it's actually child's play to adjust/set the idle with a simple screwdriver.

● The injector is installed on top of the throttle body where the spraying fuel mist makes a perfect mixture with the incoming air stream, and this spray has also a cooling effect on the manifold.
On the Honda gear shifted bikes it's also possible to flip the manifold and throttle body 180 degrees around to create a ram air filling effect, without the need for an additional bended intake tube.
Bends and curves are the enemy of horsepower, so if you point the throttle body in to the driving direction the ram air goes straight in to the cylinder head without any additional bends or curves.

If you install the throttle body forward in the driving direction, then the injector joint will be pointed backwards towards the fuel tank connection, and the throttle cable holder forwards to make an easy connection of both possible.
※ If you would like to have an injector joint installed on the throttle body pointing 180° to the other direction, then this injector joint is optionally available (LINK).

● Another convenient benefit of this large throttle body type is that it's connected to the manifold with a rubber and 2 clamps, and not with 2 bolts such as the stock 110i and 125i throttle bodies.
It's convenient because this means that you don't need to worry anymore about the bolt distance and differences between the 110i and 125i manifold/throttle bodies, this 1 set will fit all 3-pin connector 110i and 125i engines perfectly.

If you are a professional, then this means that with this 1 type of throttle body and manifold, you can serve now both your 110i and your 125i customers.

※ Before you order, check and make sure that your stock throttle body has a 3-pin TP connector!
※ This throttle body type is available in 28mm, 30mm and 32mm, and these large throttle bodies are not mentioned to be installed with the stock intake tube and air filter box.

● THIS 32MM THROTTLE BODY SET INCLUDES:

  • 1 x 3-PIN KEIHIN THROTTLE POSITION SENSOR (16060-K26-900) (LINK)
  • 1 x 32MM 3-PIN LARGE THROTTLE BODY TYPE
  • 1 x STAINLESS STEEL BRACKET/CABLE HOLDER (16169-KWN-000) (LINK)
  • 1 x B-TYPE INJECTOR JOINT
  • 2 x INJECTOR JOINT BOLTS


● THIS THROTTLE BODY CAN BE INSTALLED WITH MANIFOLD:

  • 17110-K26-3425B (LINK): ON ALL HONDA GEAR SHIFTED MODELS LISTED BELOW
  • 17111-KZR-000SC (LINK) + INJECTOR HOLE SEALING BUTTON (LINK): ON ALL HONDA SCOOTER TYPES (AT) LISTED BELOW
    ※ The distance of the holes in the 17111-KZR-000SC manifold will need to be modified to make the install possible on some 110cc scooters/cylinder heads!

HONDA GEAR SHIFTED:

  • BIZ 125 (2014 -))
  • BLADE 125 FI / SUPPRA X 125 PGM-FI
  • C110 SUPER CUB (2021- )
  • CC110 CROSS CUB (2018- )
  • CRF110F PGM-FI (2018- )
  • CRF125F PGM-FI (2019- )
  • DREAM 110i (2011 - 2018)
  • MSX125/GROM 125 (2013- )
  • MSX125 SF/GROM125 SF (2016- )
  • WAVE 110i (2011 - 2013) (DOESN'T CONNECT WITH THE 2009-2010 MODELS!)
  • WAVE 110i (2013 - 2017)
  • WAVE 110i (2017- )
  • WAVE 125i (2014 - 2015)
  • WAVE 125i (2015 - 2017)
  • WAVE 125i (2017- )
  • Z125 MONKEY (2018- )

HONDA SCOOTER (AT):

  • AIR BLADE 125i (2013- )
  • AIR BLADE 125i LED (2016- )
  • AIR BLADE 150 ABS (2020- )
  • BEAT 110 FI / ICON 110 (2012- ALL GENERATIONS)
  • CLICK 125i / VARIO125i  (2012- ALL GENERATIONS)
  • CLICK 150i / VARIO150i (2015- ALL GENERATIONS)
  • DIO 110i (2011- ALL GENERATIONS)
  • GENIO 110 (2019- )
  • LEAD 125 (201- ALL GENERATIONS)
  • MOOVE 110 (2014- ALL GENERATIONS)
  • SCOOPY-i (2009- ALL GENERATIONS)
  • SH125 MODE (2014- ALL GENERATIONS)
  • SPACY-i (2011- ALL GENERATIONS)
  • VISION 110 (2011- ALL GENERATIONS)
  • ZOOMER-X 110 (2011- ALL GENERATIONS)
