Name: 16422-000-B00 | B-TYPE INJECTOR JOINT
Brand: YUMINASHI
SKU: 16422-000-B00
Price: 315 THB
Availability: InStock

Description

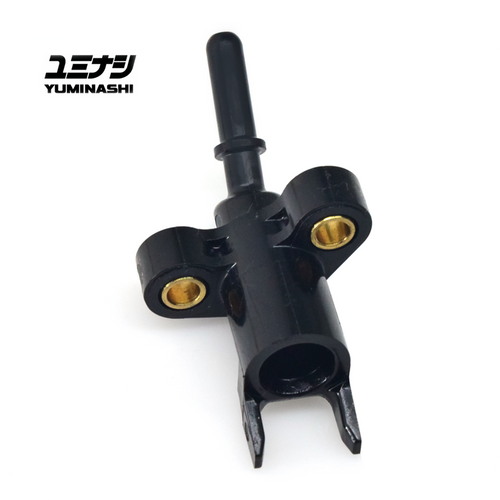

● YUMINASHI B-TYPE INJECTOR JOINT (FOR DOWNDRAFT THROTTLE BODY)

● This B-Type injector joint is mentioned to be installed on the Yuminashi Type-1, Type-2 and Type-3 manifolds, and on the downdraft throttle body model.

The downdraft throttle body is the throttle body with the large TPS sensor block , and with the injector installed in the throttle body.

These downdraft throttle bodies with standard A-Type injector where used by Honda on these models:

Honda C50 Super Cub 50
Honda Z50 PGM-FI MONKEY (2009 - )
Honda CZ-i 110 (2011 - )
Honda Wave110i (2010-2011)
Honda Innova 125i (2007 - 2014)
Honda Wave125i (20017 - 2014)
Honda CBR125R (2007 - )
Honda CBR150R (2010 - )

● THESE B-TYPE INJECTOR JOINTS CAN ALSO BE INSTALLED ON DENSO INJECTOR THROTTLE BODIES!

● With these B-Type injector joints you can transform a 37mm CRF250F, 39mm CBR250R or CBR300R Denso throttle body (mentioned for a Denso injector) in to a B-Type injector throttle body.

If you install this B-Type injector joint on a Denso throttle body, then this would allow you to install the CRF250F, CBR250R and CBR300R throttle body on these bikes:

ADV300 (
FORZA NSS300 (ALL YEARS)
FORZA NSS350 (2020- )
SH300i (2018- )
SH350i (2021- )

● Once this B-Type injector joint is installed on the throttle body you can install any B-type injector in your throttle body.
Keep in mind that you need to use the A-Type to B-Type wire loom to connect the B-Type injector to your stock wire harness.

If you have the Yuminashi 31mm throttle body with A-type injector installed on a bike which comes original/stock with a B-type injector, then you need to install only this B-Type injector joint to change from A-Type injector to B-Type injector, you don't need to use the wire loom then...
