Name: 1-WIRE O2 OXYGEN SENSOR & CORD (M12x1.25 SNAP-CAP)
Brand: YUMINASHI
SKU: 36532-KWW-641R
Price: 45.14 USD
Availability: InStock

Description

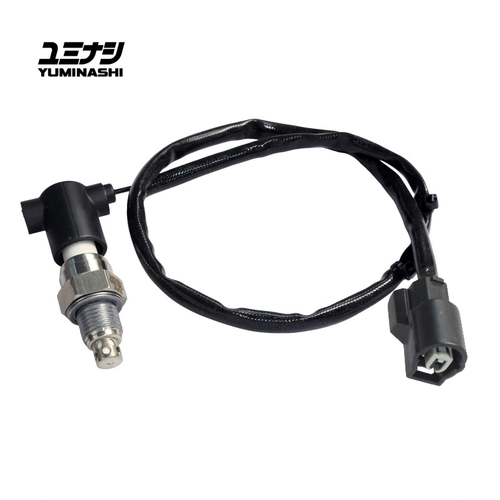

● YUMINASHI 1-WIRE O2 / LAMBDA OXYGEN SENSOR & CORD (36532-KWW-641R)

● The 36532-KWW-641R is the standard 1-wire (single-pin male snap-cap terminal, unheated, M12 x 1.25mm thread) oxygen sensor used across Honda's 50cc to 300cc PGM-FI and eSP/eSP+ motorcycles and scooters.

● Because Honda assigns a new middle model code (such as KWW, K26, K0F, K0G, K2E, KYZ, K73, GFM, K35, K44) whenever a new motorcycle or scooter is released—even when the physical sensor installed in the cylinder head or exhaust port is identical—the 36532-KWW-641R serves as a direct plug-and-play replacement for any Honda model equipped with the 1-wire snap-on O2 sensor cord cap (36533-xxx-xxx).

※ IMPORTANT FITMENT CHECK (1-WIRE vs. 4-WIRE EURO5+): This sensor is strictly for 1-WIRE SNAP-CAP SYSTEMS where the single-wire rubber boot cap clicks directly onto the top pin of the sensor body (no fixed wire pigtail permanently attached to the sensor).
※ This sensor will NOT fit 2025+ EURO-5+ (OBD2-2) models that switched to a 4-wire heated O2 sensor with a multi-pin wiring harness connector!

● TECHNICAL SPECIFICATIONS:

• PART NUMBER: 36532-KWW-641R
• SENSOR TYPE: 1-Wire Unheated Zirconia O2 / Lambda Sensor
• CONNECTOR TERMINAL: Single Male Snap-Pin (Fits OEM 90-Degree Snap-On Rubber Boot Cap)
• THREAD SIZE: M12 x 1.25mm (Standard Honda Cylinder Head / Exhaust Port Thread)
• INSTALLATION POSITION: Cylinder Head Exhaust Port | Front Exhaust Header

● 1. THIS 1-WIRE O2 SENSOR IS THE CORRECT SENSOR TO BE INSTALLED ON HONDA MINI 4-STROKE & LEISURE BIKES:

• CC50 CROSS CUB | AA06E (2018- )
• CC110 CROSS CUB | NBC110XD / C110XJ / JA10 / JA45 / C110XN JA60 EURO-5 (2013- )
• CC125 CROSS CUB (2020- )
• CT125 HUNTER CUB / TRAIL 125 | JA55 / JA65 EURO-5 (2020- ) (1-WIRE O2 SENSOR)
• MONKEY Z50 FI (PGM-FI) | AB27 (2009-2017)
• MONKEY 125 (Z125) | JB02 4-SPEED / JB03 5-SPEED EURO-5 (2018-2024) (1-WIRE O2 SENSOR) ※ Does not fit 2025+ "JB05" Euro-5+ 4-Wire O2 Sensor models!
• MSX125 / GROM 125 | JC61 OG / JC75 SF / JC92 5-SPEED EURO-5 (2013-2024) (1-WIRE O2 SENSOR) ※ Does not fit 2025+ "Euro-5+" 4-Wire O2 Sensor models!
• ST125 DAX | JB04 EURO-5 (2022-2026) (1-WIRE O2 SENSOR)

● 2. THIS 1-WIRE O2 SENSOR IS THE CORRECT SENSOR TO BE INSTALLED ON HONDA UNDERBONE, SUPER CUB & MANUAL/SEMI-AUTO BIKES:

• BLADE 125 FI / SUPRA X 125 PGM-FI (2012-2019)
• C50 SUPER CUB スーパーカブ / PRO / MD (PGM-FI) | AA04 / AA07 / AA09 / NBC50 (2012- )
• C110 SUPER CUB スーパーカブ / PRO / MD / NBC110 POSTIE BIKE | JA07 / JA10 / JA23E / JA42 / JA44 / JA56 / K58 / K88 / JA59 EURO-5 (2009- )
• C125 SUPER CUB スーパーカブ | JA48 EURO-4 / JA58 EURO-5 (2018-2024) (1-WIRE O2 SENSOR) ※ Does not fit 2025+ "JA71" Euro-5+ 4-Wire O2 Sensor models!
• CZ-i 110 | KWB (2008- )
• DREAM 110i / SUPER DREAM 110 (PGM-FI) | KWW (2011-2018)
• DREAM 125i / NCX125 (PGM-FI) (2015- )
• EX5 110 DREAM FI (PGM-FI) | JC51E (2014- )
• RS125 FI / XRM125 FI / MOTARD (2017- )
• RS150R / RS-X 150 / SONIC 150R / WINNER 150 / WINNER-X 150 / SUPRA GTR 150 (2015- )
• WAVE 110i / AFS110 | KWB / KWW / K03 / K58 / JA14E EURO-5 (2009- )
• WAVE 125i / AFS125 / BIZ 125 | KYZ / K7
