Name: 1.4KG MANUAL CLUTCH LOCKOUT (CRF110F | NBC110 | C110 SUPERCUB | W110i)
Brand: YUMINASHI
SKU: 23120-KTL-M14
Price: 1780 THB
Availability: InStock

Description

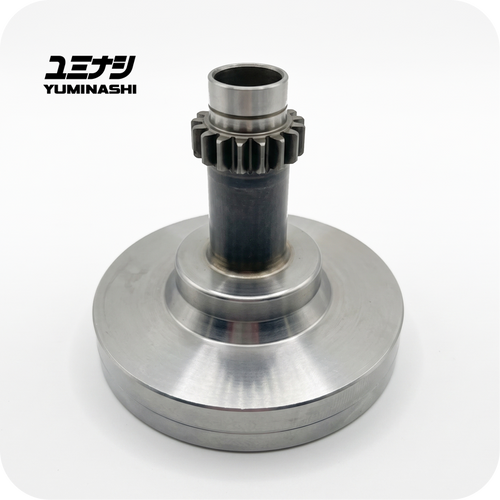

● 1.4KG MANUAL CLUTCH LOCKOUT (CRF110F | NBC110 | C110 SUPERCUB | W110i) (23120-KTL-M14)

➥ TRUE MANUAL CLUTCH CONVERSION, THE ENGINEERING ADVANTAGE:

● When converting your CRF110F, NBC110 Postie, or Wave 110i to a true manual clutch, the factory centrifugal clutch must be bypassed. The factory assembly is exceptionally heavy and generates localized heat as the internal shoes slip and shed friction material into your engine oil. While eliminating this rotational mass drastically improves throttle response, installing an ultra-lightweight aluminum primary gear (300g - 500g) is a critical tuning error that destroys drivability and bottom-end reliability.

● This solid 1.4Kg Inertia-Tuned mass is engineered to sit exactly in the volumetric sweet spot for both standard-bore and large-displacement setups. It sheds enough parasitic drag for aggressive off-the-line acceleration, while retaining the essential kinetic energy required for long, sustained pulls at the top of the gear range.

● PRECISION MANUFACTURING & MAXIMUM RELIABILITY:
● Genuine OEM Metallurgy (Silent Operation): Unlike standard aftermarket or locally machined sprockets that suffer from poor tolerances, brittleness, and severe gear whine, this unit integrates a Genuine Honda OEM primary gear. This guarantees exact factory tooth hardening, a perfectly tight mesh with the secondary clutch basket, and zero howling or high-frequency vibration at high RPM.

● Critical Oil Delivery System: Cheap lockout gears often block or bypass standard lubrication routes, starving the crank pin. This weight is specifically machined to retain the vital internal oil feed passages for the connecting rod and directly accepts the factory centrifugal oil filter plate, ensuring your oil remains properly filtered and temperatures remain managed under heavy loads.

● Direct-Fit Installation: Engineered to bolt directly onto the standard crankshaft snout. It requires zero machining, cutting, or modification to the factory woodruff key.

● Kinetic Momentum & Stall Prevention: A single-cylinder engine requires rotational inertia to carry the piston smoothly through the compression stroke. This 1.4Kg mass dampens violent firing pulses, protecting the connecting rod from shock-loading. It provides stable idle and stall resistance at low speeds—an absolute necessity for technical trail riding on a CRF110F or heavy hauling in stop-and-go traffic on an NBC110 Postie.

● PROACTIVE TUNING NOTES:
● To maximize the reliability and performance of this true manual conversion, you must adjust the surrounding mechanical variables:

Secondary Clutch Compatibility: 100% of the engine's torque load is now transferred to the secondary multi-plate clutch. This primary gear meshes flawlessly with both the stock secondary clutch and our upgraded 5-Disc Plate Clutch Conversion Set (22110-KWW-C01S) (link).
If running a big-bore high-compression piston, upgrading your secondary clutch pack with heavy-duty springs and high-friction plates is mandatory to prevent slip.
Final Drive Ratios: Because this 1.4Kg mass spins up faster than the stock centrifugal clutch, you will reach the rev limiter much quicker. Proactively drop 1 to 2 teeth on your rear gear sprocket (or add 1 tooth to the front) to extend the powerband and prevent lugging or over-revving.
Ignition & Camshafts: If pairing this lockout with a high-lift camshaft or increased compression ratio, ensure your ignition timing is not overly advanced in the 1,500–2,500 RPM range to prevent kickback against the lighter rotating mass during engine start and low-RPM operation.
