STRAIGHT (2PCS/SET) FUEL HOSE CONNECTOR SET (FOR 6.3MM O.D. INJECTOR JOINT)

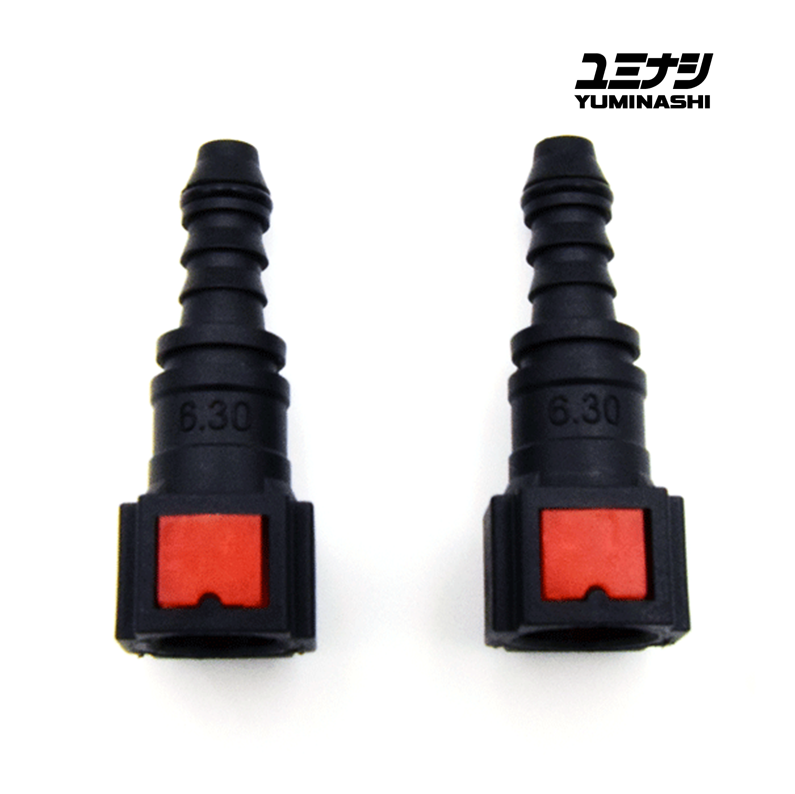

YUMINASHI STRAIGHT (2PCS) FUEL HOSE CONNECTOR SET (FOR 6.3MM O.D. INJECTOR JOINT) (17530-630-800S)

Hover over image to zoom

  • YUMINASHI STRAIGHT (2PCS) FUEL HOSE CONNECTOR SET (FOR 6.3MM O.D. INJECTOR JOINT) (17530-630-800S)
  • YUMINASHI STRAIGHT (2PCS) FUEL HOSE CONNECTOR SET (FOR 6.3MM O.D. INJECTOR JOINT) (17530-630-800S)
YUMINASHI
฿355.00
SKU:
17530-630-800S
Weight:
20.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● YUMINASHI STRAIGHT (2PCS) FUEL HOSE CONNECTOR SET (FOR 6.3MM O.D. INJECTOR JOINT) (17530-630-800S)

● If you want to run high RPM's, then you need the fuel volume to do so, and for this we have 3 different sets of Fuel Hose Connectors, and 3 different diameter Reinforced High Pressure Fuel Hoses to provide you a very solid custom solution as engine tuner to work the fuel supply optimalisation out based on your needs.

● The Straight Fuel Hose Connector set 17530-630-800S we show you on this page will provide you the fastest flow with the least chance on a pressure drop, since the flow is pushed straight out of the fuel pump and straight into the injector.

● The 3 different Fuel Hose Connectors we have are available are;

  • this set with 2 straights (17530-630-800S) in the package.
  • a set with two 90° connectors (LINK) in the package.
  • a set with one 90° connector, and one straight connector (LINK) in the package.

※ Keep in mind that this fuel hose connector is mentioned to be connected on a injector joint with a outer diameter of 6.3 to 6.4mm (check your injector joint outer diameter before you order!).

※ If you install our 6.3mm fuel hose connectors on the 5mm hose, then it can be done, but keep in mind that it will be a tight fit, and you will need to use the 13mm clamps then because the hose outer diameter will expand.


● FUEL HOSES (OPTIONAL!, DOESN'T COME WITH THE FUEL HOSE CONNECTOR SET)

● The 3 different Inner Diameters fuel hoses we have available are:

  • The ID 5mm one (LINK) (typically stock for CBR250/300) |
  • The ID 6.3mm one (LINK)
  • The ID 8mm one (LINK)

    **and in total 6 different lengths from each hose diameter to choose from, and this to allows you to buy only the hose lengths you need, and nothing more than the hose lengths you need...

● Buying the connectors and hose lengths based on your needs allows you also to be creative, and to work something out such as a double injector setup for your bike, example; if you need a 180cc/minute injector (which are hard to get), then you could use 2 injectors of 90cc/minute, or any other combination to work a solution out based on the Air Fuel Ratio you have in mind.

● Our Reinforced High Pressure Fuel Hoses allow you to run your engine with an E5 or E85 Ethanol / Gasohol fuel blend, and to install basically any high pressure fuel pump you have in mind, these fuel hoses are absolutely racing track ready and they won't let you down, whatever your tuning project might be!...

※ We recommend to keep your hose length as short as possible, and to avoid bends in your hose because every bend is squeezing the inner diameter of your hose together, and with a narrow inner diameter it isn't possible to run high RPM's!...


● TECHNICAL DETAILS / SPECIFICATIONS OF THE STRAIGHT FUEL HOSE CONNECTORS:

  • INNER DIAMETER (ID): 4.8MM | 0.18897 INCH
  • OUTER DIAMETER (OD): 8.7 - 8.9MM | 0.34251 - 0.35039 INCH


budget-logo-2.png SMART SHOPPER TIP:

       ※ BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
