12100-KPP-90AL | AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR)

Hover over image to zoom

  • YUMINASHI AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AL)
  • YUMINASHI AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AL)
  • YUMINASHI AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AL)
  • YUMINASHI AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AL)
  • YUMINASHI AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AL)
  • YUMINASHI AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AL)
YUMINASHI
238,07€
SKU:
12100-KPP-90AL
Weight:
1,700.00 Grams
Availability:
CUSTOM PART | WILL BE PRODUCED FOR YOU AFTER WE RECEIVED YOUR ORDER (WON'T SHIP FAST!)
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

buying-2-discount-300pxl-.png● YUMINASHI AIR & LIQUID COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR)

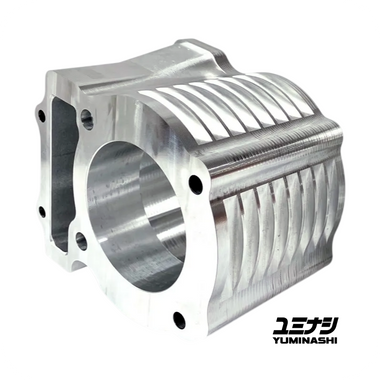

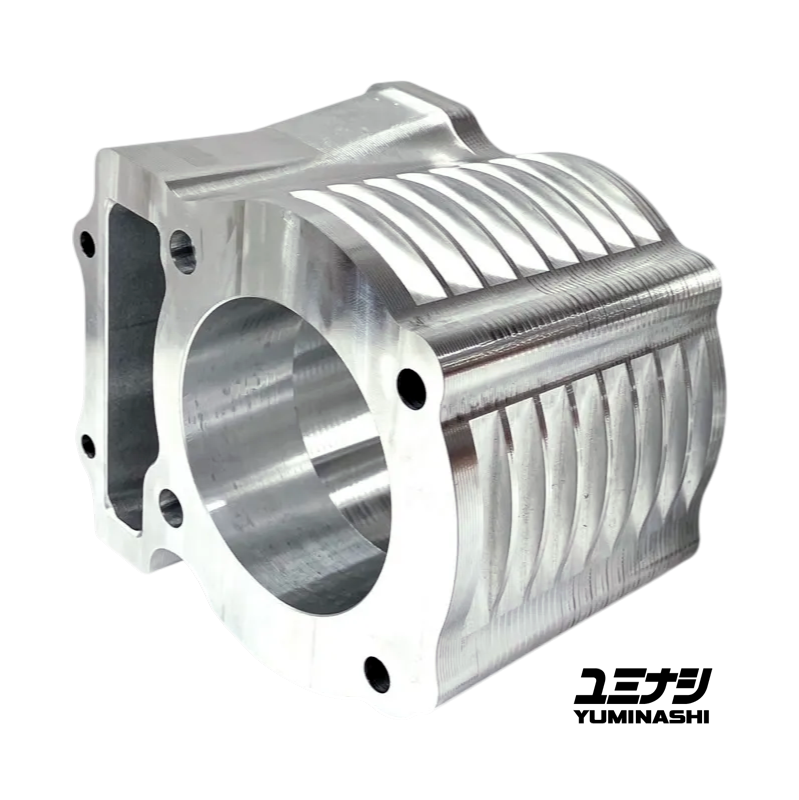

● This billet aluminium cylinder block for the DOHC CBR150R is 90mm long, and is intended for anyone who want to create a large bore cylinder engine, with a stroked up crankshaft.

 This cylinder block comes with HT (High Temperature) Silicone Gasket in the set, and this is a Tuner Edition cylinder block, which means that it comes WITHOUT A CYLINDER SLEEVE, and that you need to cut the cylinder down based on the size/length you need for your tuning project.

● The stock CBR150R cylinder block is liquid cooled, and this specific YUMINASHI 12100-KPP-90AL cylinder block is an upgrade again since it's both, liquid cooled and air cooled with a stroked up higher compression engine setup in mind.

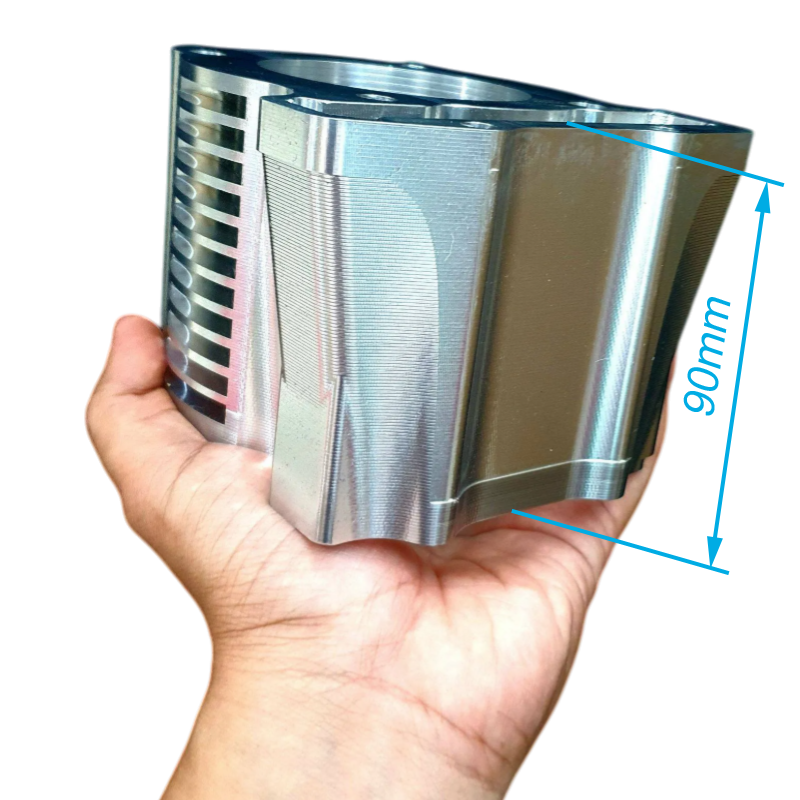

● This cylinder block is machined out of 1 billet piece of aluminium, and it doesn't have narrow spots in the design such as the casted stock cylinder block, which is easy to have a crack in the casted cylinder block if you bore it up too large, with a leaking cylinder as result.

● We see customers using our Air & Liquid Cooled cylinder block from the stock piston up to a 72mm piston (If you want to go larger than 72mm, then we recommend you to use our Air Cooled Cylinder Blocks, and we have copper head gaskets up to cylinder bore size 85mm without coolant holes).

 This cylinder block can be used to install a CBR150R DOHC 4-valve head on a CBR125R engine, this cylinder block can not be used on a SONIC125 engine!!!!!!


 Keep in mind that the oil channel at the cylinder gasket side isn't machined in this cylinder block.
 We make this cylinder block 90mm long, and you need to shorten it based on the length you need.
 You also need to make the oil feed channel into the cylinder block at the cylinder base gasket side!
 This is a special part, machined specially for you, after you have confirmed your order (we don't keep stock, so this is a slow moving part, don't order this item if you are a person without any patience!)

budget-logo-2.png SMART SHOPPER TIP:

        BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
  • Click Here if you would like to know how to check the shipping fee for your order...
