12100-KPP-90AC | AIR COOLED BILLET CNC CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR)

Hover over image to zoom

  • YUMINASHI AIR COOLED BILLET CNC CYLINDER BLOCK - 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AC)
  • YUMINASHI AIR COOLED BILLET CNC CYLINDER BLOCK - 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AC)
  • YUMINASHI AIR COOLED BILLET CNC CYLINDER BLOCK - 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AC)
  • YUMINASHI AIR COOLED BILLET CNC CYLINDER BLOCK - 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AC)
  • YUMINASHI AIR COOLED BILLET CNC CYLINDER BLOCK - 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AC)
  • YUMINASHI AIR COOLED BILLET CNC CYLINDER BLOCK - 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AC)
  • YUMINASHI AIR COOLED BILLET CNC CYLINDER BLOCK - 90MM LONG | TUNER EDITION (CBR150R CARBURETOR) (12100-KPP-90AC)
YUMINASHI
RM1,136.00
SKU:
12100-KPP-90AC
Weight:
1,700.00 Grams
Availability:
CUSTOM PART | WILL BE PRODUCED FOR YOU AFTER WE RECEIVED YOUR ORDER (WON'T SHIP FAST!)
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)

 Product Description

buying-2-discount-300pxl-.png● YUMINASHI AIR COOLED BILLET CNC SUPER-BORE CYLINDER BLOCK- 90MM LONG | TUNER EDITION (CBR150R CARBURETOR)

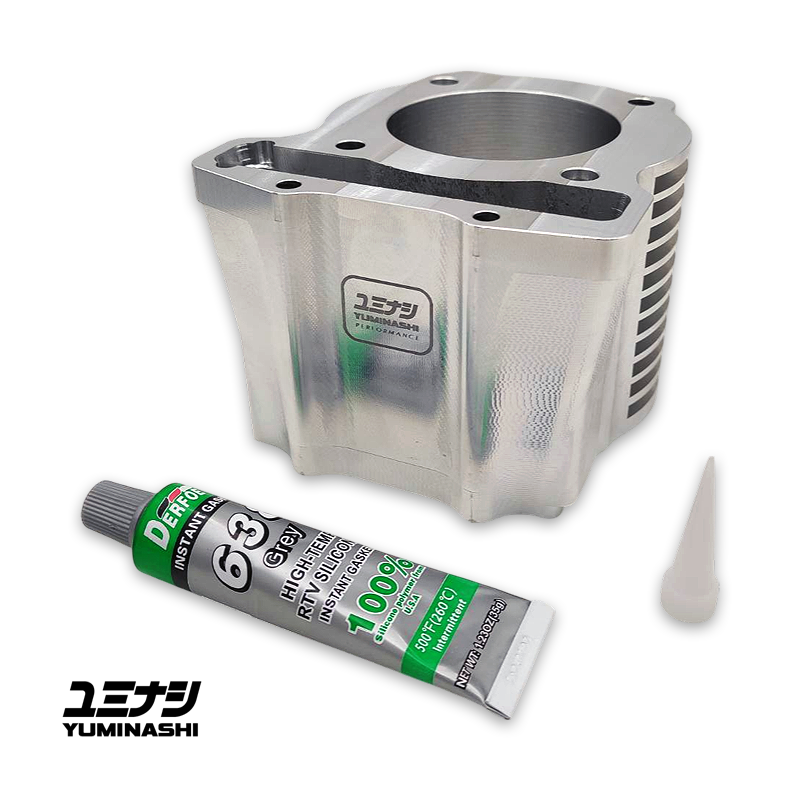

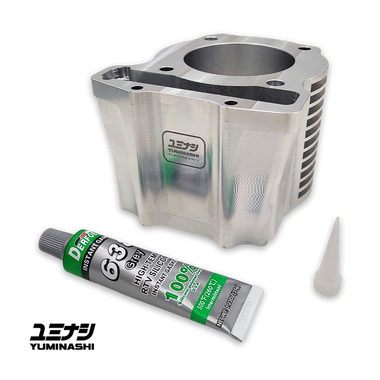

● This billet aluminium cylinder block for the DOHC CBR150R is 90mm long, it comes with a hole of Ø71.6mm and is a air-cooled version intended for anyone who want to create a very large super bore stroked up engine (we have cylinder head gaskets up to 85mm).

 This cylinder block comes with HT (High Temperature) Silicone Gasket in the set, and this is a Tuner Edition cylinder block, which means that it comes WITHOUT A CYLINDER SLEEVE, and that you need to cut the cylinder down based on the size/length you need for your tuning project.

● The stock CBR150R cylinder block is liquid cooled, and this specific YUMINASHI 12100-KPP-90AC cylinder block is AIR-COOLED SUPER BORE VERSION, so you need to modify your cylinder head, which you can do by welding YUMINASHI 19110-014-283 | Ø14MM / 28.3MM L. ALUMINIUM RADIATOR HOSE CONNECTOR PIPE (LINK) to your cylinder head to allow the coolant flow to your head and return from your head to your radiator.

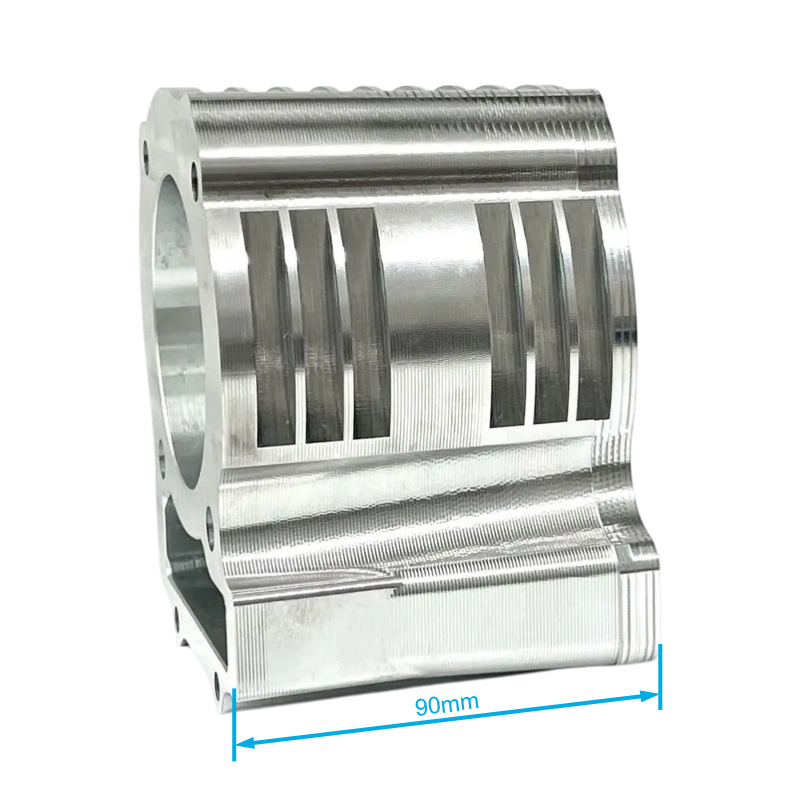

● This cylinder block is machined out of 1 billet piece of aluminium, and it doesn't have narrow spots in the design such as the casted stock cylinder block, which is easy to have a crack in the casted cylinder block if you bore it up too large, with a leaking cylinder as result.

● We see customers using our Air-Cooled cylinder block from the stock piston up to a 85mm piston (If you want to go larger than a 72mm bore, then we recommend you to use only our Air Cooled Cylinder Blocks, we have copper head gaskets up to cylinder bore size 85mm without coolant holes).

 This cylinder block can be used to install a CBR150R DOHC 4-valve head on a CBR125R engine, this cylinder block can not be used on a SONIC125 engine!!!!!!


 Keep in mind that the oil channel at the cylinder gasket side isn't machined in this cylinder block.
 We make this cylinder block 90mm long, and you need to shorten it based on the length you need.
 You also need to make the oil feed channel into the cylinder block at the cylinder base gasket side!
 This is a special part, machined specially for you, after you have confirmed your order (we don't keep stock, so this is a slow moving part, don't order this item if you are a person without any patience!)

budget-logo-2.png SMART SHOPPER TIP:

        BUYING MORE THAN 1 PIECE CUT THE TRANSPORT PRICE, AND YOU RECEIVE A 10% DISCOUNT ON TOP OF IT!

   ※ B2B:

  • Purchases between 2 & 4 pieces of this product will receive a 10% DISCOUNT
  • Purchases between 5 & 9 pieces of this product will receive a 15% DISCOUNT
  • Purchases between 10 & 19 pieces of this product will receive a 20% DISCOUNT
  • Purchases between 20 & more pieces of this product will receive a 25% DISCOUNT
