SMALL TORQUE CONTROL VARIATOR SET V2.0 (ADV160 - PCX160 4V)

YUMINASHI SMALL TORQUE CONTROL VARIATOR SET V2.0 (ADV160 - PCX160 4V) (22110-K1Z-J10S)

Hover over image to zoom

  • YUMINASHI SMALL TORQUE CONTROL VARIATOR SET V2.0 (ADV160 - PCX160 4V) (22110-K1Z-J10S)
  • YUMINASHI SMALL TORQUE CONTROL VARIATOR SET V2.0 (ADV160 - PCX160 4V) (22110-K1Z-J10S)
  • YUMINASHI 4V TORQUE CONTROL VARIATOR SET (PCX160 4V- SH125/150 4V - VARIO160 4V...) (22110-K1Z-J10TC)
  • YUMINASHI 4V TORQUE CONTROL VARIATOR SET (PCX160 4V- SH125/150 4V - VARIO160 4V...) (22110-K1Z-J10TC)
  • YUMINASHI 4V TORQUE CONTROL VARIATOR SET (PCX160 4V- SH125/150 4V - VARIO160 4V...) (22110-K1Z-J10TC)
  • YUMINASHI 4V TORQUE CONTROL VARIATOR SET (PCX160 4V- SH125/150 4V - VARIO160 4V...) (22110-K1Z-J10TC)
YUMINASHI
฿2,650.00
SKU:
22110-K1Z-J10S
Weight:
740.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

buying-2-discount-300pxl-.png● YUMINASHI SMALL TORQUE CONTROL VARIATOR SET V2.0 (ADV160 - PCX160 4V) (22110-K1Z-J10S)

● This variator set is the small variator set, which means it's without the 14T sprocket in the package, so it won't give you the same top speed as the large set (Link to the large set), but both the small and large package have been specifically developed for the 4V ADV160 & PCX160 eSP+ engines.

● The most torque and horsepower of the 4-Valve ADV/PCX engines is located between 8,000 and 8,500RPM and this is where this variator set will bring you instantly to get you the utmost benefit of your engine power to improve top speed and acceleration.

● The variator set is CNC machined to ensure a well balanced result for each and every variator set produced.

● The Torque Control version 2.0 makes it possible to control the drop in RPM's at high speed by providing the choice to you to install, or not install the left hand side fixed drive in the variator set.

If you are a +85kg person you can check the result with the stock (left) fixed variator side installed, if you are a person from 85kg or less, then you can install the torque control left variator side which comes in the package, because this one will drop your RPM's again at higher top speed, and will make a higher top speed possible.

● This set comes with the 10KG. force clutch springs set (3pcs/set) in the package, to get rid of the huge drop in RPM's if you open the throttle from a stand still, or low speed driving position.

● The set includes 6 pieces of 10gr YUMINASHI HT carbon roller weights LINK to make the install possible on both 125cc and 160cc 4V engines.

※ The outer diameter from the movable drive is 126.7mm, which can be useful information if you are planning to install this variator on another engine as the scooters described below...

※ The belt will need to adjust, we recommend to run to top speed for a distance, to let the engine cool down afterwards, and to repeat this 3 times to get the final result.

※ It's possible that the first time you run to top speed you feel a vibration at idle, but this will go away after the second run.

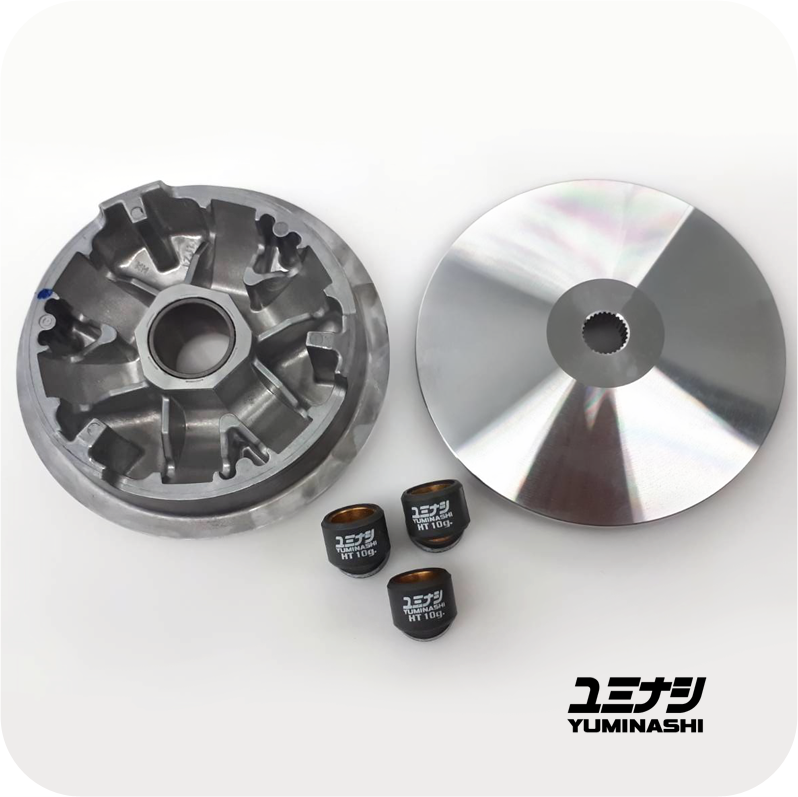

● THE 22110-K1Z-J10TCS SMALL SET INCLUDES:

  • 1 X TORQUE CONTROL MOVABLE DRIVE
  • 1 X TORQUE CONTROL FIXED DRIVE (※ WILL DROP RPM'S)
  • 1 X 10GR. ROLLER WEIGHTS SET (6PCS/SET)
  • 1 X 10KGF SMALL CLUTCH SPRING SET (3PCS/SET) (LINK)


● THE 22110-K1Z-J10TCS YUMINASHI 4V TORQUE CONTROL VARIATOR SET CAN BE INSTALLED ON:

  • ADV160 (JULY 2022- )
  • FORZA125 eSP+ (2021- )
  • PCX125 4V eSP+ (2021- )
  • PCX160 4V eSP+ (2021- )
  • SH125i 4V eSP+ (2020- )
  • SH125 MODE 4V (eSP+) (2021- )
  • SH150i DIGITAL 4V eSP+ (2020- )
  • VARIO 160 4V eSP+ (2021- )
