28MM THROTTLE BODY UPGRADE SET (CB125F EURO-5 / 2021- )

Hover over image to zoom

KEIHIN / YUMINASHI
RRP: ฿10,741.00
฿3,695.00 (You save ฿7,046.00)
SKU:
16410-K0N-E28S
Weight:
350.00 Grams
Availability:
Fast moving item, ships the next day (Except on Sundays & Thai public holidays)...
Shipping:
Calculated at checkout
Minimum Purchase:
1 unit(s)
Buy in bulk and save

 Product Description

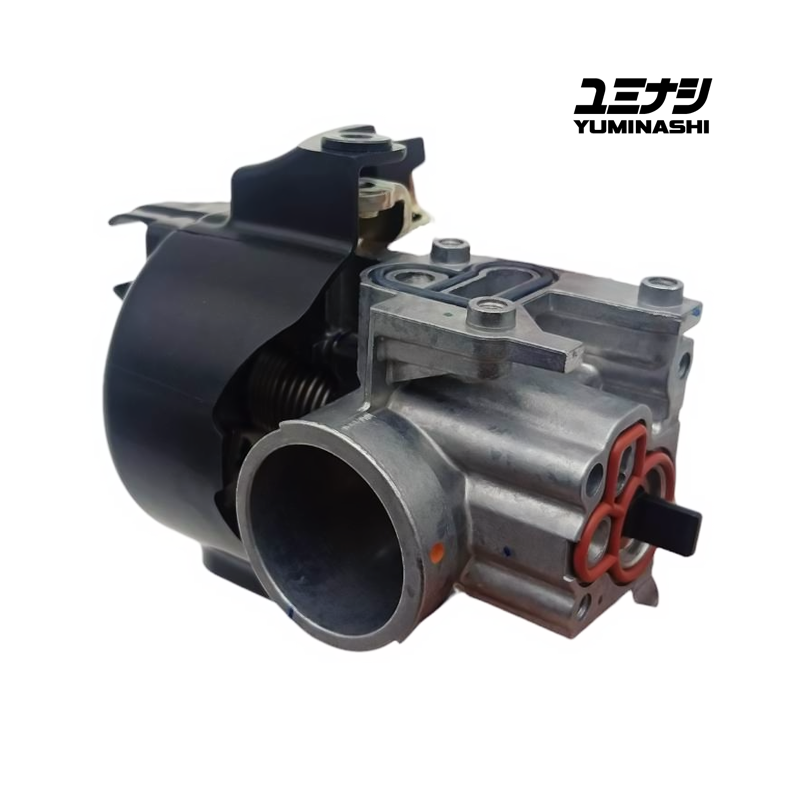

buying-2-discount-300pxl-.png● 28MM KEIHIN THROTTLE BODY UPGRADE SET (CB125F EURO-5 / 2021- )

● This KEIHIN/YUMINASHI 28mm Throttle Body Set is a very specific set to upgrade the stock 24mm throttle body of the EURO-5 CB125F eSP (2021- ), and since it's an upgrade you can simply install the sensor from your stock throttle body.

※ If you have an older generation CB125F, then keep in mind that this specific throttle body is specifically for the EURO-5 version, and it can't be installed on the older generation bikes since this throttle body is truly totally different compared to the previous generation CB125F throttle bodies and manifolds.

● The bolt distance of the 2 bolts on this throttle body to install on the manifold is 65mm, which is still the same as the previous generation, with that difference that they changed the position of the bolts, the sensors and the bracket 180°.


● THESE PARTS ARE INCLUDED IN THE 28MM THROTTLE BODY UPGRADE SET:

  • 1 x 28MM KEIHIN/YUMINASHI THROTTLE BODY
  • 1 x MANUAL IACV VALVE 16430-K97-000 (LINK)
  • 1 x THROTTLE BODY O-RING
  • 1 x IACV VALVE O-RING 16076-K35-V01
  • 1 x THROTTLE BODY SENSOR O-RING 16077-KSS-J01
  • 3 x SCREW, WASHER, 4X10 93891-04010-18

● This 28mm throttle body will fit perfectly on your stock CB125F manifold, and the idle speed can manually be adjusted with the manual IACV valve in the set.

※ This throttle body is 28mm, so this means that you will need to check and modify your stock manifold up to 28mm so it would make a perfect match with the new larger throttle body.
※ We know from experience that Honda usually makes the manifold diameters larger compared to the throttle bodies they install on it, and we are careful with providing this information because Honda might do this different based on your location in the world, but usually it's prepared to install a larger size throttle body...

※ This throttle body need to be installed with at least a 8-holes 120cc/min. flow injector (LINK), and if you have an improved exhaust/air filter system with perhaps a camshaft, you might need to install the 8-holes 140cc/min. injector (LINK).

*Injector need to be installed with some oil on the O-ring, a new O-ring is tight when installed.
**If you want to order a custom air filter, then the inner diameter of the air filter rubber need to be 36mm.

※ The stock choke valve with the 3pin connector can't be connected to this throttle body, so keep this in mind if you order this throttle body that connecting the choke valve isn't possible, which could give an issue in the winter time to start your engine. (It is possible to manually set your idle a bit lower in the winter time, so your engine when start and at idle gets some more fuel).

※ The RRP (Recommended Retail Price) mentioned above is the retail price of the stock Honda / Keihin 24mm throttle body in the UK with part number 16410-K0N-E02, without O-rings, bolts, or anything else in the set...
